Synthesis, Characterization and Anti-Corrosion Properties of Novel Quinolinol on C-steel in a Molar Hydrochloric Acid Solution

M. Galai^a , M. El Faydy^b , Y. El Kacimi^a,* , K. Dahmani^c , K. Alaoui^a , R. Touir^a,d , B. Lakhrissi^b and M. Ebn Touhami^a

^a Laboratory of Materials Engineering and Environment: Modeling and Application, Faculty of Science, University Ibn Tofail BP. 133-14000, Kenitra, Morocco

^b Laboratoire d'Agroressources et Genie des Procedes, Faculte des Sciences, Universite Ibn Tofail, BP 133, Kenitra 14000, Morocco

^c Laboratory of Materials, Electrochemistry and Environment, Faculty of Science, Ibn Tofail University, Kenitra, Morocco

^d Centre Regional des Metiers de l'Education et de la Formation (CRMEF), Avenue Allal Al Fassi, Madinat Al Irfane, BP 6210 Rabat, Morocco



Abstract

New quinoline, namely 5-(ethoxymethyl)-8-quinolinol (M-QN), has been synthesized and characterized by different spectral methods, such as 1H NMR, 13C NMR and IR spectra. Its inhibitive action against the corrosion of carbon steel in 1.0 M hydrochloric acid solution was investigated at different temperatures in the range from 25±2 to 55±2 °C by a series of known techniques, such as weight loss, open circuit potential (OCP), electrochemical impedance spectroscopy (EIS) and Tafel polarization measurements. The inhibition efficiencies obtained from all employed methods are in good agreement with each other. The obtained results show that M-QN compound is a very good inhibitor with an efficiency of 97.7 % at 10^-3 M additive concentration in a 1.0 M HCl solution. The inhibition efficiency increased with an increase of the inhibitor's concentration. Changes in impedance parameters (Rct and Cdl) were indicative of adsorption of the compound (M-QN) on the metal surface, leading to the formation of a protective film. Tafel polarization measurements showed that M-QN inhibitor is of a mixed type. The adsorption of the inhibitor on the surface of carbon steel in a 1.0 M HCl solution was found to obey Langmuir's adsorption isotherm. The kinetic and thermodynamic parameters for carbon steel corrosion and inhibitor adsorption, respectively, were determined and discussed. On the bases of thermodynamic adsorption parameters, comprehensive adsorption (physisorption and chemisorption) for the studied inhibitors on carbon steel surface was suggested.

Keywords: Corrosion inhibition, carbon steel, 5-(ethoxymethyl)-8-quinolinol, hydrochloric acidic medium, potentiodynamic polarization, EIS.



Introduction

Mild steel has been widely used as a main construction material for piping works in various industries. It has found applications in downhole casing or tubing, flow lines and transmission or distribution pipelines in oil and gas industries [1- 3]. Petroleum oil well acidization is an essential technique that is routinely used in oil and gas industries for the purpose of stimulating oil-well to ensure enhanced oil production [4,5]. This process, however, endangers the useful life of steel gadgets as a result of acid driven corrosion. In order to prevent this undesirable reaction, corrosion inhibitors are often added to the acid solution during acidification process [6-8].

These compounds inhibit corrosion by adsorbing onto a metallic surface using heteroatoms (e.g., N, O, S), polar functional groups (e.g., -OH, -NH2, -NO2, etc.), pi-electrons and aromatic rings as adsorption centers [9-11]. Inhibitors retard metal corrosion by adsorbing onto a metallic surface, and the process is influenced by some factors, which include molecular size of inhibitor, nature of substituents, inhibitor concentration, solution temperature and nature of test solution [8-11].

These compounds can form either a strong coordination bond with metal atom or a passive film on the surface [12]. The corrosion inhibition of a metal may involve either physisorption or chemisorption of the inhibitor onto the metal surface. Electrostatic attraction between the charged hydrophilic groups and the charged active centers on the metal surface leads to physicosorption. Several authors have showed that most inhibitors were adsorbed onto the metal surface by displacing water molecules from the surface and forming a compact barrier film [13, 32, 33].

Perusal of literature reveals that many N-heterocyclic compounds such as pyrimidine derivatives [14], triazole derivatives [15], tetrazole derivatives [16], phenyltetrazole derivatives [17, 18], indole derivatives [19], pyridazine derivatives [20], and benzimidazole derivatives [21], to mention but a few, have been used for the corrosion inhibition of iron or steel in acidic media. The effectiveness of quinoxaline derivatives (N-heterocyclic compounds) as effective corrosion inhibitors for carbon steel in acid media has been reported [22-24].

Quinolines and their derivatives are important constituents of pharmacologically active synthetic compounds [26], including biological activities, such as DNA binding capabilities [26], antitumor [27] and DNA- intercalating carrier [28]. Several 8-aminoquinoline compounds, for instance, Primaquine, have been applied as chemotherapeutics for the treatment of malaria disease [30]. Recently, the first quinoline-based structure (GS-9137) with very strong antiretroviral activity for HIV treatment has been synthesized [30]. Although some quinoline derivatives have been reported as corrosion inhibitors for steel in sulphuric acid medium [31], no work, to the best of our knowledge, has been documented on the corrosion inhibition potentials of quinoline derivatives, namely, 5- (ethoxymethyl)-8-quinolinol (M-QN) on hydrochloric acid medium.

5-(ethoxymethyl)-8-Quinolinol was synthesized to be used as a corrosion inhibitor. The choice of this compound was based on the consideration that this compound contains many π-electrons and heteroatoms, which induce greater adsorption of the inhibitor, compared to other organic compounds.

By considering the above mentioned remarks, the inhibition effect of 5- (ethoxymethyl)-8-quinolinol (M-QN) on the corrosion of carbon steel in a 1.0 M HCl solution was studied using electrochemical techniques and weight loss measurements. The effect of temperature on the corrosion behavior of carbon steel in a 1.0 M HCl, without and with M-QN, was investigated. In addition, adsorption of M-QN on a carbon steel surface was studied to examine basic information about the interaction between inhibitor and metal surface. Finally, to complete this study, the adsorption mechanism of M-QN molecules was proposed and is discussed.



Experimental

Weight loss measurements

The chemical composition of the used carbon steel sample is shown in Table 1.





The specimen's surface was prepared by polishing with emery paper at different grit sizes (from 180 to 1200), rinsing with distilled water, degreasing with ethanol, and drying at hot air.

The used carbon steels specimens have a rectangular form of 2.5 cm × 2.0 cm × 0.05 cm. The immersion time for weight loss was 6 h at 25±2 °C, and it was determined according to Hmamou et al. [39]. After the immersion period, the specimens were cleaned according to ASTM G [31-34]. The aggressive solution of 1.0 M HCl was prepared by dilution of analytical grade 37 % HCl with distilled water. The molecular formula of the examined inhibitor is shown in Fig. 1.





For every concentration, the mean value of the corrosion rate CR (mg cm^-2 h^-1) was determined, and the inhibition efficiency, η_w%, was calculated using Eqs. (1) and (2), respectively:







where Wb and Wa are the specimen weight before and after immersion in the tested solution, w⁰_corr% and w_corr% are the corrosion weight losses of carbon steel in uninhibited and inhibited solutions, respectively, A the area of the carbon steel specimen (cm²), and t is the exposure time (h).

Electrochemical measurements

For electrochemical measurements, the electrolysis cell was a borosilicate glass (Pyrex®) cylinder closed by a cap with five apertures. Three of them were used for the electrode insertions. The working electrode was pressure-fitted into a polytetrafluoroethylene holder (PTFE) exposing only 1 cm² of area to the solution. Platinum and saturated calomel were used as counter and reference electrodes (SCE), respectively. All potentials were measured against the last electrode.

The potentiodynamic polarization curves were recorded by automatically changing the electrode potential from negative values to positive values versus Ecorr using a Potentiostat/Galvanostat type PGZ 100, at a scan rate of 1 mV s^-1 after 30 min immersion time until reaching steady state. The test solution was thermostatically controlled at 25±2 °C in air atmosphere without bubbling. To evaluate corrosion kinetic parameters, a fitting by Stern-Geary equation was used. To do so, the overall current density values, i, were considered as the sum of two contributions, anodic and cathodic current, ia and ic, respectively. For the potential domain not too far from the open circuit potential, it may be considered that both processes followed the Tafel law [34]. Thus, it can be derived from equation (3) that:





where icorr is the corrosion current density (A cm^-2) and ba and bc are the Tafel constants of anodic and cathodic reactions (V-1), respectively. These constants are linked to the Tafel slopes β (V/dec) in a usual logarithmic scale given by equation (4):





The corrosion parameters were then evaluated by means of nonlinear least square method applying equation (2), using Origin software. However, for this calculation, the potential range applied was limited to ±0.100 V around Ecorr, because a significant systematic divergence was sometimes observed for both anodic and cathodic branches. The corrosion inhibition efficiency is evaluated from the corrosion current density values using the relationship (5):





The surface coverage values (θ) have been obtained from polarization curves for various concentrations of the inhibitor using the following equation (6):





where i⁰_corr and i_corr are the corrosion current density values without and with inhibitor, respectively.

The electrochemical impedance spectroscopy measurements were carried out using a transfer function analyzer (VoltaLab PGZ 100), with a small amplitude a.c. signal (10 mV rms), over a frequency domain from 100 kHz to 100 mHz with five points per decade. The EIS diagrams were done in the Nyquist representation. The results were then analyzed in terms of an equivalent electrical circuit using Bouckamp program [36].

The inhibiting efficiency derived from EIS, ηEIS, was calculated using the following equation (7):





where R⁰_ct and R_ct are the charge transfer resistance values in the absence and in the presence of the inhibitor, respectively.

In order to ensure reproducibility, all experiments were repeated three times. The evaluated inaccuracy did not exceed 10 %.



Results and discussion

Preparation and characterization of 5-(ethoxymethyl)-8-quinolinol

Preparation and characterization of 5-(ethoxymethyl)-8-quinolinol is represented in Fig. 2.





The melting points were determined on a digital automatic electrothermal IA 9200. 1H and 13C NMR spectra were recorded on a Bruker 300 WB spectrometer at 300 MHz, for solutions in Me2SO-d6. Chemical shifts are given as Δ values with reference to tetramethylsilane (TMS) as internal standard.

Infrared spectra were recorded from 400 cm^-1 to 4000 cm^-1 on a Bruker IFS 66v Fourier transform spectrometer using KBr pellets.

5- (chloromethyl)-8-quinolinol hydrochloride (1) was synthesized according to the method described by El Faydy et al. [37].

A mixture of 2.3 g, 0.01 mol of 5-(chloromethyl)-8-quinolinol hydrochloride (1), 25 mL of anhydrous ethanol and 0.84 g, 0.01 mol of added potassium bicarbonate (k2CO3) was heated at reflux temperature for 1 hour. The mixture was poured into 50 mL of water and made alkaline with 5% of ammonium hydroxide. The product which precipitated was filtered, then dissolved in ether, and the ethereal solution was washed with water and dried over anhydrous sodium sulfate. After removal of the solvent, 5-ethoxymethyl-8- hydroxyquinoline (2) was crystallized from ethanol; yield 1.63g (80%); m.p.78- 80 °C.

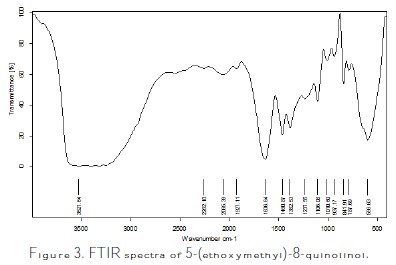

The FTIR spectra of 5-(ethoxymethyl)-8-quinolinol was displayed in Fig. 3.





It is observed that the absorption peaks between 3800 cm^-1 and 2700 cm^-1 corresponded to -OH, and bands around 3026 cm^-1 for aromatic C=C and C-H stretching are observable. Instead, the absorption peaks between 1275 cm^-1 and 1298 cm^-1 related to CN, and strong and large peaks (2850 cm^-1, 2940 cm^-1 and 1450 cm^-1) took place in the spectrum of 5-(ethoxymethyl)-8-quinolinol corresponding to the presence of CH2.

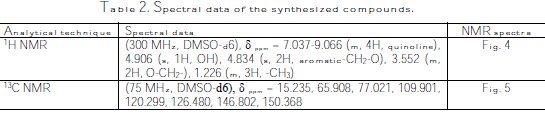

1H and 13C NMR spectra were used to characterize and confirm the obtained product structure (see supplementary data) (Table 2).









Weight loss measurements

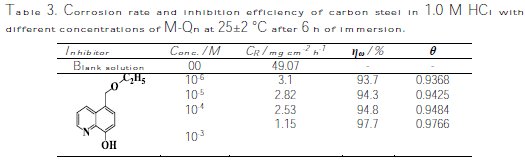

The corrosion rate of carbon steel in 1.0 M HCl with and without different concentrations of M-Qn was determined after 6 h of immersion at 25±2 °C. This immersion time choice was made according to literature [39]. The obtained results are presented in Table 3).





It has been observed that the corrosion rate (CR), decreases with an increase in inhibitor's concentration, M-Qn. At the same time, the inhibition efficiency, η_w%, was enhanced by the inhibitor's concentration, reaching a maximum of 97.7% at 10^-3 M of M-Qn. The good inhibitive performance of 5-(ethoxymethyl)-8-quinolinol may be explained on the basis of adsorption of the molecule (physisorption and/or chemisorption). The M-Qn molecule can easily be protonated to form cation-ionic forms in an HCl solution, and therefore adsorb onto the metal surface through the already adsorbed chloride ions. Also, the adsorption of the neutral 5-(ethoxymethyl)-8-quinolinol molecule could occur through the formation of links between the d-orbital of iron atoms, involving the displacement of water molecules from the metal surface, the lone sp2 electron pairs present on the N, and O atoms and p-orbitals in the aromatic ring, blocking the active sites on the steel surface and, therefore, decreasing the corrosion rate. The inhibition efficiency increased with concentration of M-Qn, reaching a maximum at 10^-3 M of M-Qn. This behavior could be attributed to the increase in adsorption of the inhibitor at the metal/solution interface with the increase on its concentration.

Open circuit potential (OCP) measurements

The variances of OCP of the carbon steel as a function of time in aerated 1.0 M HCl solution, in the absence and presence of different concentrations of M-Qn, are shown in Fig. 6.

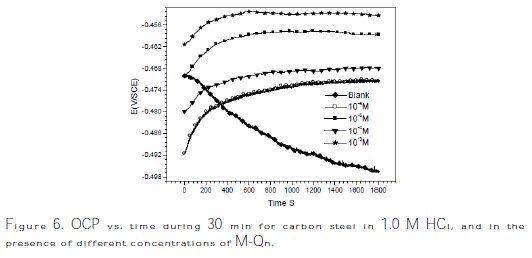

Fig. 6 shows the differences of the open circuit potential (OCP), with time, for carbon steel corrosion against 1.0 M HCl solution in the presence and absence of M-Qn. It was noticed that the addition of the inhibitor molecule induces a continuous shift in OCP (i.e., Ecorr) to nobler potentials, indicating the spontaneous adsorption of inhibitor onto the metallic surface.

Corrosion potential stabilization occurs after almost 600 (s) of immersion time in 1.0 M HCl solutions.

For 10^-3 M of M-Qn, OCP becomes more positive compared to 10^-6, 10^-5 and 10^-4 M of inhibitor. This means that the surface becomes nobler with an increased inhibitor concentration, which can probably be due to the stronger oxides formation on the metal surface. With the addition of 10^-3 M of M-Qn, the presence of dissolved oxygen and H+ ions on metal surface is increased and can lead to formation of more oxides and more positive values of OCP [33].

Potentiodynamic polarization curves

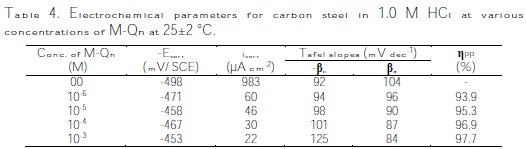

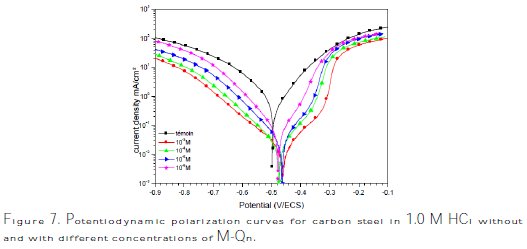

Potentiodynamic polarization curves of carbon steel in 1.0 M HCl without and with different concentrations of M-Qn at 25±2 °C are given in Fig. 7, and their extrapolation parameters and inhibition efficiencies are plotted in Table 4.







It can be seen that the M-Qn addition hindered the acid attack on carbon steel, and an increase in its concentration gave a decrease in anodic and cathodic current densities, indicating that this inhibitor acted as a mixed-type inhibitor. However, the cathodic Tafel slopes (βc) changed with the quinolinol substituted compound addition, indicating a modification of the mechanism of cathodic hydrogen evolution, which suggests that these compounds powerfully inhibit the corrosion process of carbon steel, and their ability as corrosion inhibitors are enhanced as their concentrations are increased. The suppression of the cathodic process can be due to the covering of the surface with a monolayer originated by the adsorbed inhibitor molecules [27]. It is also seen that the inhibition efficiency increased with concentrations, reaching a maximum of 97.7 % at 10^-3 M of M- Qn, and exhibited both cathodic and anodic inhibition through adsorption on carbon steel surface blocking active sites [28]. So, a slight definite change on the corrosion potential (Ecorr) was observed. According to Riggs [29] and other authors, if the displacement in E is > 85 mV/ Ecorr, the inhibitor can be seen as of the cathodic or anodic type; if the displacement in E is < 85 mV/ Ecorr, the inhibitor can be seen as of the mixed type. In our study, the maximum displacement is less than 85 mV/ Ecorr, which indicates that M-Qn is a mixed type inhibitor. The results obtained by the potentiodynamic polarization curves confirmed those obtained by weight loss measurements.

Electrochemical Impedance Spectroscopy (EIS)

The aim of this section was to confirm the obtained results by potentiodynamic polarization curves and weight loss measurements. Fig. 8 presents the Nyquist plots of carbon steel in 1.0 M HCl, without and with different concentrations of M-Qn at the corrosion potential.

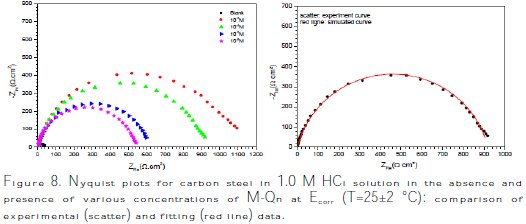

It is noted that the Nyquist plot of carbon steel in the absence and presence of all concentrations of inhibitors contains a slightly depressed semi-circular shape, and only one time constant appeared, indicating that carbon steel corrosion is mainly controlled by a charge transfer process.

In this case, it can be seen that these plots were composed by one capacitive loop in the absence and presence of different concentrations of M-Qn. This behavior can be attributed to charge transfer of the corrosion process. It is also noted that the diameter of the semicircle increased with the inhibitor's concentration, indicating an increase in corrosion resistance of the material [43].

However, a CPE element was employed in order to investigate the inhibitive film properties on the metallic surface. Thus, the impedance of CPE can be described by the following equation:





where j is an imaginary number, Q is the frequency independent real constant, w = 2πf is the angular frequency (rad s^-1), f is the frequency of the applied signal, n is the CPE exponent for whole number of n = 1, 0, -1, and CPE is reduced to the classical lump element-capacitor (C), resistance (R) and inductance (L) [44]. The use of these parameters, similar to the constant phase element (CPE), allowed the depressed feature of Nyquist plot to be readily reproduced.

In addition, the effective calculated double layer capacitance (C) derived from the CPE parameters according to the following equation [45]:





The most important data obtained from the equivalent circuit are presented in Table 4. It may be remarked that Rct values increased, while Cdl values decreased with inhibitor's concentrations, indicating that more inhibitor molecules are adsorbed onto the metallic surface, providing better surface coverage and/or enhancing the thickness of the protective layer at the metal/solution interface [46, 47]. In addition, these changes in Rct and Cdl can be attributed to the gradual displacement of water molecules and/or chloride ions on the carbon steel surface [48], leading to a protective solid film, and then to a decrease in the extent of the dissolution reaction [49, 50]. In its turn, the decrease of Cdl with concentrations can be explained by the decrease in local dielectric constant and/or the increase in the protective layer thickness on the electrode surface. This trend is in accordance with Helmholtz model, given by the following equation [51]:





where ε is the dielectric constant of the protective layer, ε0 is the permittivity of free space (8.854 ×10^-14 F cm^-1) and S is the effective surface area of the electrode. However, the inhibition efficiencies obtained from electrochemical impedance measurements increase with concentration and show the same trend as those obtained from potentiodynamic polarization and gravimetric measurements.

However, the results can be interpreted using the equivalent circuit presented in Fig. 9, which has been previously used to model the iron/steel interface [52].





Excellent fit with the model was obtained for all experimental data (Fig. 10).

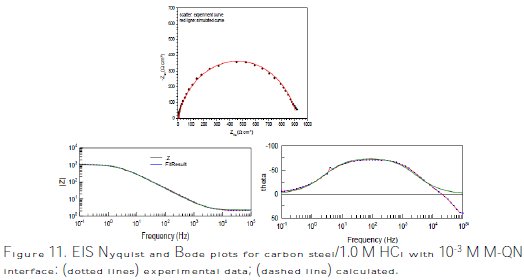

The Nyquist and Bode plots of both experimental and simulated data of carbon steel in 1.0 M HCl solution without and with 10^-3 M of M-Qn are shown in Fig. 11.





It is clear that the impedance plots are in accordance with those calculated by the used equivalent circuit model. Various parameters such as charge-transfer resistance (Rct), double layer capacitance (Cdl) and degree of heterogeneity (ndl) obtained from impedance measurements are shown in Table 5, which contains all the impedance parameters obtained from the simulation of experimental impedance data, including Rct and n.

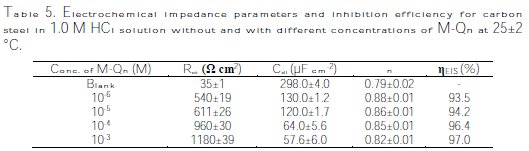

In Table 5 are also shown the calculated ''double layer capacitance values (Cdl)'', and the relaxation time constant (τ) of charge-transfer process using the following equation (11):





It is obvious from the results that M-Qn inhibited carbon steel corrosion in an 1.0 M HCl solution at its different concentrations, and ηEIS (%) was seen to continuously increase with the arise of concentration, reaching a maximum of 97.0 % at 10^-3 M. The inhibition efficiencies, calculated from Tafel impedance results, showed the same trend as those obtained from EIS, polarization and weight loss measurements (Fig. 12).





Effect of temperature

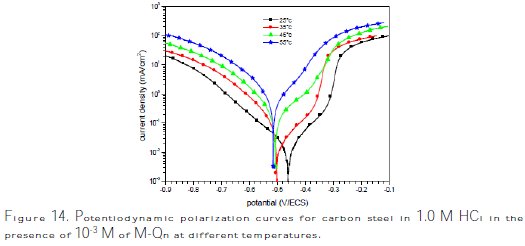

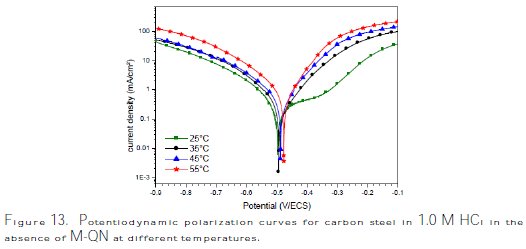

Temperature can modify the interaction between the carbon steel electrode and the acidic media without and with M-Qn. Thus, the potentiodynamic polarization curves for carbon steel in 1.0 M HCl in the absence and presence of 10^-3 M of M- Qn in the temperature range of 25±2 °C to 55±2 °C are shown in Figs. 13 and 14, respectively.







It is remarked that these curves exhibited Tafel regions. It is also noted that the anodic and cathodic branches increased with the increase of temperature.

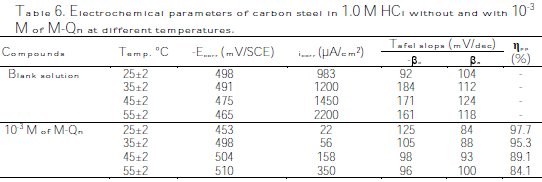

The various electrochemical parameters were calculated from Tafel plots and are summarized in Table 6.





It can be seen that icorr increased with an increase in temperature both in uninhibited and inhibited solutions, and the values of inhibition efficiency of M- Qn decreased with an increase in temperature. Thus, the inhibition efficiencies of M-Qn are temperature-dependent.

Adsorption isotherm and thermodynamic parameters

The surface coverage values (θ) of carbon steel in 1.0 M HCl, in the presence of 10^-3 M of M-Qn, were obtained from weight loss measurements (Table 3). This parameter has been used to explain the best isotherm, in order to determine the adsorption process. As it is known, the adsorption of an organic adsorbate onto a metal/solution interface denotes a substitutive adsorption process between the organic molecules in the aqueous solution, Org(sol), and the water molecules on the metallic surface, H2O(ads) [42]:





where Org(sol) and Org(ads) are the organic molecules in the aqueous solution, and adsorbed onto the metallic surface, respectively, H2O(ads) is the water molecules on the metallic surface, and X is the size ratio representing the number of water molecules replaced by one molecule of organic adsorbate [53].

However, the considered Langmuir isotherm model was as described in reference [54]:

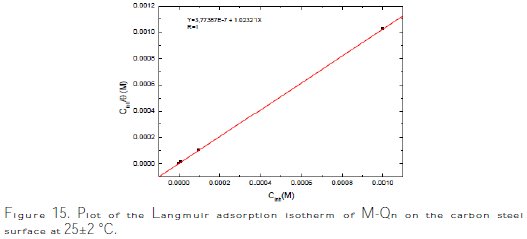

In this study, the Langmuir isotherm was fitted. The best fit straight line (strong correlation with R2 ≈ 1) is obtained for the plot of Cinh/θ vs. Cinh, with slopes around unity (Fig. 15).





This suggested that the adsorption of the studied inhibitor at the metallic surface obeyed Langmuir's adsorption isotherm model, and exhibited single-layer adsorption characteristics. This kind of isotherm involved the assumption of no interaction between the adsorbed species onto the electrode surface [55].

In addition, the adsorption constant, Kads, was related to the free energy of adsorption, ΔGads, by the following equation (14) [54]:





where 55.55 value represents the water concentration in solution by mol L^-1, R is the universal gas constant and T is the absolute temperature.

The calculated value of the free energy of adsorption, ΔGads, from the adsorption isotherm is -46.6 kJ mol^-1 at 25±2 °C. It is well known that values of ΔGads of the order of -20 kJ/mol or lower indicate a physisorption; those of order of - 40 kJ/mol or higher are associated with chemisorptions, as a result of the sharing or transfer of electrons from organic molecules to the metal surface, to form a co- ordinate; while values between -20 kJ moL^-1 and -40 kJ mol^-1 indicate both physisorption and chemisorption [41, 46, 48].

Corrosion kinetic parameters

The data presented in Table 7 revealed that M-Qn took its inhibition efficiency at all temperature range.





This behavior confirmed the higher adsorption equilibrium constant Kads values, indicating the physisorption and chemisorption of M-Qn at the carbon steel surface. This result has been explained by some authors as a likely specific interaction between the iron surface and the inhibitor. So, Ivanov [58] explained this increase in temperature by the change in the nature of the adsorption mode; the inhibitor is being physically adsorbed at lower temperatures, while this physisorption is favored by the increase in temperature. The same phenomenon was explained by other researchers as an increase in the surface coverage by the inhibitor [59]. Thus, at a surface with high coverage values, the diffusion through the surface layer containing the inhibitor and corrosion products became the rate- determining step of the metal dissolution process [60]. Thus, the inhibition properties of M-Qn can be explained by the kinetic model. The dependence of the corrosion value, icorr, with the temperature can be regarded as an Arrhenius- type process given by equation (15) [61]:





where Ea is the apparent activation energy of the corrosion process, R is the universal gas constant, A is the Arrhenius pre-exponential constant and T is the absolute temperature.

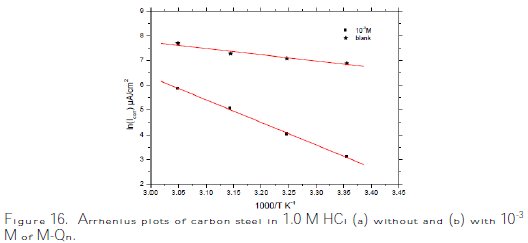

The Arrhenius plots for carbon steel in 1.0 M HCl without and with 10^-3 M of M- Qn, according to equation (13), are presented in Fig. 16.





These obtained plots are straight lines, and the slope of each straight line gives the activation energy value, Ea. It is noted that the increase in the corrosion rate is more pronounced with the rise in temperature for the free solution. So, in the presence of M-Qn, the corrosion rate is slightly increased at explored temperatures. The Ea values were found to be equal to 21.0 kJ moL^-1 and 76.0 KJ moL^-1 in the absence and presence of 10^-3 M of M-Qn (Table 7).

The decrease of the inhibitor efficiency with an increased temperature, which referred to a higher value of Ea, when compared to the free solution, was interpreted as an indication of an electrostatic character of the inhibitor's adsorption. So, the investigated inhibitor significantly blocked some of the active sites on the metal surface. In general, the inhibitor adsorbed at the most active sites of the surface with lowest Ea and, thus, isolated them. Other active sites of higher Ea took part in the more intense corrosion process.

In addition, this change in Ea with the M-Qn addition can be attributed to the change in the corrosion process mechanism, in the presence of adsorbed inhibitor molecules [62].

Other kinetic data are accessible using the alternative formulation of the Arrhenius equation equation (16) [63]:





where h is Plank's constant, N is Avogadro's number, ΔSa is the entropy of activation and ΔHa is the enthalpy of activation.

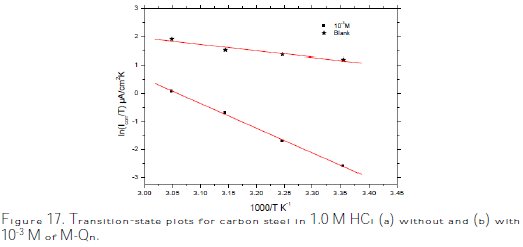

Plots of ln (icorr/T) versus the reciprocal of temperature (1/T) of carbon steel in 1.0 M HCl without and with 10^-3 M of M-Qn are presented in Fig. 17.





Straight lines are obtained with a slope of ΔHa /R and an intercept of lnR/Nh + ΔSa/R. The values of ΔHa and ΔSa are calculated and listed in Table 7. The positive sign of the enthalpies ΔHa improved the endothermic nature of the carbon steel dissolution process, whereas large negative values of entropies, ΔSa, implied that the activated complex in the rate determining step represents an association rather than a dissociation step, meaning that a decrease in disordering takes place on going from reactants to the activated complex [61-66].



Conclusions

Concluding the experimental part, it was clearly demonstrated that all used techniques are able to characterize and follow the corrosion inhibition process promoted by 5-(ethoxymethyl)-8-quinolinol. The following conclusions can be drawn:

- The corrosion rate of carbon steel decreased with an increase in inhibitor's concentration, reaching a minimum at 10^-3 M.

- 5-(ethoxymethyl)-8-quinolinol exhibited good inhibition properties for carbon steel corrosion in 1.0 M HCl solution, and increased with an increase in the concentration of inhibitor.

- The obtained results showed that 5-(ethoxymethyl)-8-quinolinol acted as mixed-type inhibitor of carbon steel corrosion in 1.0 M HCl.

- EIS measurement results indicated that the resistance of the carbon steel electrode increased with inhibitor's concentrations, reaching a maximum at 10-3 M of 5-(ethoxymethyl)-8-quinolinol.

- The inhibition efficiency of 5-(ethoxymethyl)-8-quinolinol can be stabilized by the participation of the two adsorption modes, physisorption and chemisorption.

- Thermodynamic adsorption parameters (ΔHa, ΔSa and ΔGa.) showed that the studied inhibitor was adsorbed onto carbon steel surface by an endothermic and spontaneous process.

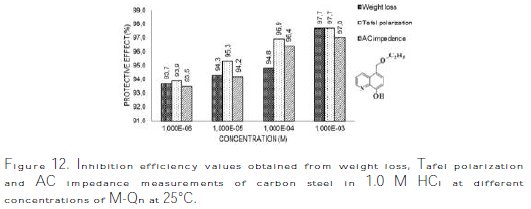

- Reasonably good agreement was observed between the obtained data from weight loss, potentiodynamic polarization curves and electrochemical impedance spectroscopy techniques.
