Petrology and Geochemistry of lavas from Sal Island: Implications for the variability of the Cape Verde magmatism



P. Torres*†; L. C. Silva*,**; J. Munhá**,***; R. Caldeira*,**,****¹; J. Mata**, *** & C. Tassinari*****

* Centro de Geologia, Instituto de Investigação Científica Tropical (IICT)

** Centro de Geologia da Universidade de Lisboa (CeGUL)

*** Faculdade de Ciências da Universidade de Lisboa – Departamento de Geologia (GeoFCUL)

**** U. Geologia e Cartografia Geológica do Laboratório Nacional de Energia e Geologia (LNEG)

***** Centro de Pesquisas Geocronológicas (CPGeo) do Instituto de Geociências do Instituto de Geociências da Universidade de São Paulo (IGc-USP)

† Deceased



Abstract

Sal Island (Cape Verde Archipelago) preserves a magmatic history ranging from ≈ 25.6 Ma to ≈ 0.6 Ma. The chemistry of magmatism varies from Hy-normative (Serra Negra basalts: ≈ 5 Ma) to highly SiO₂ undersaturated (nephelinites and melilitites). The calculated temperatures of magmatic segregation are higher than those usually considered for the asthenosphere, thus endorsing the role of a mantle plume to the origin of Cape Verde magmatism. Nephelinites and melilitites are characterized by pronounced K negative anomalies which are interpreted as reflecting the interaction of plume magmas with the lithosphere. Some of the Sal lavas are characterized by low ¹⁴³Nd/¹⁴⁴Nd (down to 0.512577) – when compared with the HIMU component. These values are similar to those usually reported for the Southern Cape Verde Islands. This suggest the role of a EM1-type end-member to the magma sources of the Sal, which is for the first time evidenced from the whole rock composition of one of the Northern Cape Verde Islands.

Keywords: Cape Verde Archipelago; Mantle plume; EM1; HIMU; Sal Island.



Petrologia e Geoquímica das lavas da ilha do Sal: Implicações para a variabilidade do magmatismo de Cabo Verde

Resumo

A ilha do Sal (Arquipélago de Cabo Verde) preserva uma história magmática estendendo-se desde os ≈ 25.6 Ma aos ≈ 0.6 Ma. As características químicas do magmatismo variam desde composições caracterizadas por hiperstena normativa, em rochas com cerca de 5 Ma (Formação da Serra Negra), até litótipos altamente subsaturados em sílica (nefelinitos e melilititos). As temperaturas de extracção magmática calculadas indicam valores superiores aos normalmente referenciados para a astenosfera, suportando os modelos que invocam o papel de uma pluma mantélica para a origem dos magmas de Cabo Verde. Nefelinitos e melilititos caracterizam-se por pronunciadas anomalias negativas em K que são interpretadas como resultado da interacção dos magmas provenientes da pluma mantélica com a litosfera. Algumas das lavas da ilha do Sal caracterizam-se por valores de ¹⁴³Nd/Nd baixos (até 0.512577) quando comparados com os que caracterizam o componente HIMU. Tais características são similares às que têm sido descritas para as ilhas de Sul. Tal indica que, em oposição ao normalmente considerado, a contribuição do componente EM1 para as fontes mantélicas de Cabo Verde não se restringe às ilhas do Sul.

Palavras-chave: Arquipélago de Cabo Verde, Pluma mantélica, EM1, HIMU; Ilha do Sal.



1 – INTRODUCTION

Cape Verde archipelago (14º48’ – 17º12’N; 22º44’ – 25º28’W) is located on the East Central Atlantic between the Equator and the Cancer Tropic, some 600 to 900 km away from the western African coast and »2000 km to the east of the Mid Atlantic Ridge.

The archipelago (Fig. 1) is composed of two groups of islands (windward vs. leeward or Northern vs. Southern), a subdivision that also reflects their different geochemical characteristics.  Southern Islands are less Nd- and Pb-radiogenic and more Sr radiogenic than the Northern Islands, which are also characterised by more unradiogenic He signatures. Such distinction is also evident from a ²⁰⁶Pb/²⁰⁴Pb vs. ²⁰⁸Pb/²⁰⁴Pb diagram. Whereas the Northern Islands plot along the North Hemisphere Reference Line (NHRL; Hart, 1984) the Southern Islands are mainly positioned above the NHRL. This dichotomy is considered to reflect the distinct contribution of HIMU- and EM1-type mantle end-members to the sources of these two groups of islands. On Southern Islands an EM1-type end-member dominates whereas on the Northern Islands the isotopic signatures are dominated by a HIMU-type end-member, flavoured with a contribution of the lower mantle in order to account for the unradiogenic He isotopic signatures. The additional contribution of a depleted end-member is mainly required to explain the composition of Northern Islands (Gerlach et al., 1988; Davies et al., 1989; Christensen et al., 2001; Jørgensen & Holm, 2002; Doucelance et al., 2003; Escrig et al., 2005; Holm et al., 2006; Millet et al., 2008; Barker et al., 2009a, b; Martins et al., 2010). For submarine lavas of the Flamengos formation (Santiago Island) it was also proposed the contribution of a FOZO-like component (Barker et al., 2009a; b).



Fig. 1 – Location of Sal Island at the Cape Verde Archipelago.

– Localização da ilha do Sal no Arquipélago de Cabo Verde.



We would like to emphasize that such geochemical distinction between Northern and Southern Islands has been made based upon the study of an incomplete set of data. Indeed, and particularly in what concerns Sal Island, the available isotope data is limited to ⁸⁷Sr/⁸⁶Sr  and Pb isotopic ratios for one and three samples, respectively (Doucelance et al. 2003).

In this paper we will present detailed geochemical data from Sal Island lavas, which will be discussed in conjunction with the available cartographic (Silva et al, 1990) and geochronological (Torres et al., 2002a; Holm et al., 2008) data.



2 – GEOLOGICAL SETTING

The Cape Verde archipelago, occurs on an » 83 km thick lithosphere (Cazenave et al., 1988) with 120 to 140 Ma (Williams et al., 1990; Müller et al. 2008) and is composed by 10 islands and 8 islets presenting a horseshoe geographical distribution opening westward. It is located on the southwest part of the Cape Verde Rise, a » 2.2 km high and 1400-1600 km wide swell considered the largest oceanic intra-plate bathymetric anomaly (e.g. Lodge & Helffrich, 2006). Crustal thickness is anomalously high (up to 22 km) beneath the islands, which is attributed to magmatic transfer from the mantle plume source to crustal levels (Lodge & Helffrich, 2006). However, between the islands the crust is only »7 km thick, which is normal for oceanic settings (Ali et al., 2003; Pim et al., 2008).

The positioning of the Cape Verde archipelago is also coincident with important geoid (7.6 ± 0.3 m) and heat flow (16 ± 4 mWm-2) anomalies (Courtney & White, 1986; Monnereau & Cazenave, 1990) being characterized by a geoid height to topography ratio (4.4 ± 0.23) consistent with the reheating of the lower lithosphere (Grevemeyer, 1999). The Cape Verde islands are flanked by a flexural moat, which is less important than it would be expected from surface volcanic(s) loading. This was interpreted as suggesting the existence of sub-surface, upward acting, loads counteracting that surface downward loading (Ali et al., 2003). All these suggest the role of a mantle plume to the genesis of Cape Verde.

The genesis of Cape Verde from a deeply anchored mantle plume seems to be supported by seismic tomography studies imaging a low S-wave velocity domain extending down to 2800 km (Montelli et al., 2006; see also Zhao, 2007) and by unradiogenic He isotope signatures obtained both from silicate and carbonatitic rocks (R/Ra up to 15), which point to the contribution of a high 3He/4He reservoir, plausibly located in the deepest parts of the lower mantle (cf. Christensen et al., 2001; Doucelance et al., 2003; Mourão et al., 2007; Mata et al., 2010). However, a recent analysis of P-to-S receiver functions showed that the time separation between the 410 and 660 km discontinuities is not modified beneath Cape Verde (Helffrich et al., 2010), suggesting that the plume role on the magma genesis is still an open question in Cape Verde.

The region has been subjected to very important vertical movements testified by the occurrence of MORB at Maio and Santiago islands (De Paepe et al., 1974; Gerlach et al., 1988; Millet et al., 2008), by seafloor sediments of disputable Lower Cretaceous age cropping out in Maio (e.g. Azéma et al., 1990; Holm et al., 2008) and by the occurrence on several islands of uplifted submarine alkaline lavas, which, for example, reach 450 m apsl in Santiago Island and 400 m apsl in Brava Island (Serralheiro, 1976; Zazo et al., 2007; Holm et al., 2008; Ramalho et al., 2010 a; b; Madeira et al., 2008; 2010; Mourão et al., 2010).



3 – GEOLOGY AND GEOCHRONOLOGY

With 216 km2, Sal is an arid, highly eroded and flat island reaching the highest height at Monte Grande (406 m), a Quaternary lapilli cone.

Extensive field work and K-Ar determinations (Torres et al. 2002a, see Figs. 2 and 3) enabled the proposition of the following volcanostratigraphic subdivisions (see also Torres et al., 2002b and Holm et al., 2008).

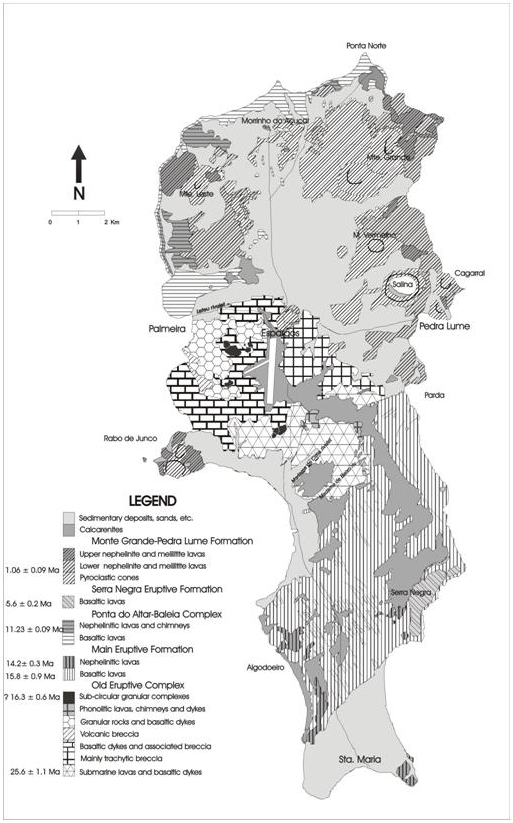

Fig. 2 – Geological map of Sal Island showing the stratigraphic units (after TORRES et al., 2002a), simplified and adapted from “Carta Geológica da ilha do Sal, na escala 1/25 000” (SILVA et al., 1990).

– Mapa Geológico do Sal com as principais unidades estratigráficas (modificado Torres et. al., 2002a), simplificado e adaptado da “Carta Geológica da ilha do Sal, na escala 1/25 000” Silva et al (1990).

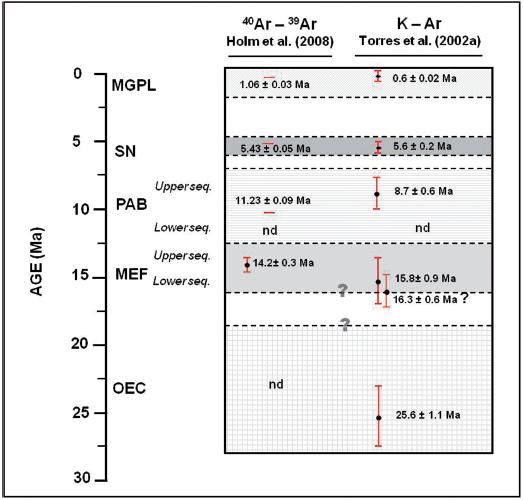

Fig. 3 – Illustration of the available age determinations for Sal Island (TORRES et al., 2002a; HOLM et al., 2008). OEC – Old Eruptive Complex, MEF – Main Eruptive Formation, PAB – Ponta Altar Baleia Complex, SN – Serra Negra Formation, MGPL – Monte Grande Pedra Lume Formation. Black question mark indicates that the age obtained for the essexitic rock of a subcircular complex, thought to be part of the OEC, is close to the age determined for basalts from the MEF. This raises the possibility that some of the intrusives in OEC are coeval with the overlying volcanic sequences, as suggested by TORRES et al. (2002a). However, field evidences and a possible age resetting must be taken in consideration. Hence the doubt about the statigraphic position of these intrusives remains until further age determinations are obtained.

– Ilustração das determinações geocronológicas disponíveis para a ilha do Sal (Torres et al., 2002a; Holm et al., 2008). OEC – Complexo Eruptivo Antigo, MEF – Formação Eruptiva Principal, PAB – Complexo de Ponta Altar Baleia, SN – Formação da Serra Negra,  MGPL – Formação de Monte Grande – Pedra Lume. Os pontos de interrogação indicam que a idade obtida para uma rocha essexítica de um complexo sub-circular, os quais têm sido relacionados com o OEC, está muito próxima da idade dos basaltos da MEF. Levanta-se, assim, a possibilidade de algumas destas intrusões serem contemporâneas das sequências vulcânicas do MEF, tal como sugerido por Torres et al. (2002a). Contudo, as evidências de campo e a possibilidade de ter havido re-equilibrio tardio, devem também ser tomadas em consideração. Assim, a dúvida acerca da posição estratigráfica destas intrusões só poderá ser esclarecida com a obtenção de mais determinações isotópicas.



The Old Eruptive Complex is mainly composed by submarine lavas and hialoclastites of alkali basaltic composition. The unaltered core of a pillow lava allowed the determination of a reliable K-Ar age of 25.6 Ma (Torres et al., 2002a) corresponding to the most ancient isotopic age obtained for the Cape Verde hotspot. These rocks were intruded by an impressive dyke swarm of variable composition (basaltic to trachytic) with N70ºE, E-W and N20ºW as dominant strikes. N70ºE is the dominant orientation to the north of the Leteu rivulet, where dykes correspond to about 80 % of the outcropping area N20ºW is the dominant dyke orientation in the region between Madama de Baixo and Madama de Cima rivulets (Fig. 2).

Intrusives bodies (foidic syenites, gabbros and alkali pyroxenites) which sometimes occur as zoned sub-circular complexes, are interpreted as resulting from the solidification of subvolcanic magma chambers. In these sub-superficial reservoirs basic Ne-normative magmas gave origin to pyroxenitic cumulates and chemically evolved to produce (theralitic) gabbros, essexites and nepheline syenites (Silva, 1991, Caldeira & Silva, 2008).

Micritic limestones included in the volcanic products of this complex (Silva et al. 1990; Ubaldo et al. 1991) attests to the submarine origin of part of the sequence. Furthermore, according to Ramalho et al. (2010 a), the high planktic/benthic ratio indicates pelagic conditions associated with depths in excess of 300–400 m, suggesting that the Old Eruptive Complex corresponds to the seamount stage of the Sal development and implying a significant (> 350 m) uplift of the volcanic island.

Subaerial volcanism is testified by some rare and volumetrically unimportant flows and dykes of melanephelinites and by flows, dykes and chimneys of phonolitic composition.

After a period of intense dissection, the eruption rates reached its highest values during the genesis of the Main Eruptive Formation when submarine and subaerial alkali olivine basalts (15.8 Ma, Torres et al., 2002a) and olivine nephelinites (14.2 Ma; Holm et al., 2008) were formed. This sequence, mainly outcropping in the Southeastern part of the island is followed by the Ponta do Altar-Baleia Complex. In this complex, a marine deposit (≈ 2m thick), including calcarenites, a conglomeratic level and, towards the top, siltites and argillites, separates the underlying alkali basaltic rocks from the olivine nephelinites. For the upper nephelinitic rocks, outcropping at Morrinho do Açúcar volcanic chimney, ages of 8.7 Ma (Torres et al., 2002a) and of 11.2 Ma (Holm et al., 2008) were obtained.

It is worthwhile to notice that Torres et al. (2002a) obtained 9.7 Ma for a nephelinite outcropping in the Serra Negra region, which was considered, by field arguments, to be part of the Main Eruptive Formation (upper sequence). This formation also outcrops on the southeastern extreme of the island where Holm et al. (2008) obtained the 40Ar/39Ar age of 14.2 Ma. Such significant age discrepancy and the fact that the 9.7 Ma age was obtained from a nephelinite cut by latter ijolitic pegmatitoids, advise for the necessity of an age confirmation for the Main Eruptive Formation nephelinites.

After the formation of these nephelinitic rocks, volcanic activity decreased significantly or even stopped. During this period of volcanic quiescence erosion was the main shaping process of the island being testified by the formation of a lahar type deposit. During this period marine limestones and calcarenites were also deposited. The study of planctonic foraminiferous allows considering the limestones of an Upper Miocene age (M. Lourdes Ubaldo, oral com.) which conforms with the radiometric ages of the enclosing volcanic rocks.

The Main Eruptive Formation is cut by a prominent dyke swarm of a remarkably constant orientation (N40ºW) suggestive of the existence of a clearly anisotropic stress field with s1 (compression) oriented to N40ºW.

A new period of volcanic activity occurred by the end of Miocene with the genesis of the Serra Negra Eruptive Formation (~5.5 Ma; Torres et al., 2002a; Holm et al., 2008) in which submarine volcanic facies are gradually replaced by subaerial ones. This is the only period marked by the formation of Hy-normative basaltic rocks at the Sal Island. In opposition with the dominant fissural volcanism during the development of the Old Eruptive Complex and the Main Eruptive Formation, volcanic activity is now clearly centered.

A long period of volcanic quiescence (» 5 Ma) occurred until the upper Pleistocene when highly undersaturated rocks (olivine nephelinites and olivine melilitites) were erupted (lava flows and pyroclastic cones) to give origin to the Monte Grande-Pedra Lume Formation (1.06 to 0.6 Ma, Holm et al, 2008; Torres et al., 2002a ). An 1100 m diameter crater generated by a phreatic/phreatomagmatic explosion (Silva et al., 2002) is the most significant geomorphological expression of this formation; the evaporitic salt deposits continuously forming within it are clearly related with the name of the Sal island. The cones from which the Pedra Lume volcanics erupted occupy a belt limited by the fault zone of Madama de Baixo rivulet. This belt, with a orientation of NE – SW, probably extend seaward as it is suggested by the submarine apron evident from bathymetry of the NNE extremity of the island.

The highly eroded and low-lying morphology of Sal is dominated by extensive wave-cut platforms and terraces mostly formed during Quaternary (Bebiano 1932; Lecointre 1963;

Serralheiro 1968; Silva et al. 1990; Torres et al. 2002b, Zazo et al., 2007). Recently Zazo et al. (2007) identified 16 terrace levels from 1 to 60 m a.s.l. but, as noticed by Ramalho et al. (2010a), omitted the 100 m level, on top of Serra Negra, previously identified by Silva et al. (1990). According to Ramalho et al. (2010a), this terrace is older than 1 Ma.



4 – ANALYTICAL METHODS

A subset of 58 samples were selected for analysis from a larger collection taking in account the defined volcanostratigraphy and a careful thin section study (which screened out samples presenting strong evidences of meteoric/hydrothermal alteration and/or where phenocrysts represent > 10% volume). These rocks were analyzed for major and trace elements (Cr, Ni, Cu, Zn, Rb, Ba, Sr, Nb, Zr, and Y) at the CCM – IICT (Centro de Cristalografia e Mineralogia do Instituto de Investigação Científica Tropical, Portugal) by X-ray fluorescence spectrometry (Philips PW 1400). 18 samples were further analyzed for REE (and Sc, Cs, Ta, Hf, and U) by neutron activation (INAA) at the Activation Laboratories LTD (Ontario, Canada) and for ⁸⁷Sr/⁸⁶Sr and ¹⁴³Nd/¹⁴⁴Nd at the CPGeo-IGUSP (Centro de Pesquisas Geocronológicas do Instituto de Geociências da Universidade de São Paulo, Brasil).

Sm-Nd analytical procedures followed those described by Sato et al. (1995).

Mass spectrometric analyses were performed on a VG ISOMASS 354 fully automated mass spectrometer with five collectors. Sm and Nd analysis were determined by isotopic dilution technique, using a mixed ¹⁴⁹Sm-¹⁵⁰Nd spike, with an Nd concentration of 0.0003314 mmol/g and ¹⁴⁹Sm content of 0.004575 mmol/g. Nd and Sm were loaded as phosphates on two Ta side filaments of a triple filament assembly, with Re as the ionizing central filament. The quality of the analytical measurements by isotopic dilution techniques was evaluated using a standard ¹⁴²Nd/¹⁴⁴Nd ratio of 1.141828. The Nd isotopic compositions were corrected for mass fractionation by normalizing to a value of 0.7219 for ¹⁴⁶Nd/¹⁴⁴Nd.

Average ¹⁴³Nd/¹⁴⁴Nd for La Jolla and BCR-1 standards, yielded results of 0.511847 ± 0.000022 and 0.512662 ± 0.000027, respectively.

Rb and Sr contents and Rb/Sr ratios were determined by X-Ray fluorescence on powders by means of a Philips PW- 1380/00 automatic spectrometer. Samples with low Rb and Sr contents (2ppm), were re-analyzed by isotopic dilution technique, using ⁸⁵Rb and ⁸⁴Sr spikes. The samples were dissolved with HF+HNO< class=text781>₃ overnight at 65°C, and the Sr purified using a conventional ion exchange column with AG50WX8 cation exchange resin (200-400#) as described, with some modifications, by Kawashita (1972). The Sr was loaded on a single Ta filament with phosphoric acid. The ⁸⁷Sr/⁸⁶Sr ratios were corrected for mass fractionation by normalizing to a value of 0.1194 for ⁸⁶Sr/ ⁸⁸Sr. During the period of this work, six analyses of the NBS-987 standard averaged 0.71026 ± 0.00002 (Is). Procedural blanks for Sr were of the order of 1 ng. Errors reported here for initial ⁸⁷Sr/⁸⁶Sr ratios (ISr) are at the 2s level.

Mineral compositions were determined at Centro de Geologia da Universidade de Lisboa (CeGUL), on polished thin sections, using a 5 mm beam in a three channel wavelength dispersive JEOL-JCXA733 electron microprobe, operated at an accelerating voltage of 15 kv and a probe current of 25nA. Standards were natural homogeneous minerals (Si-wollastonite and olivine; Ca-wollastonite; Ti and Na – kaersutite; Ti – ilmenite; Al-disthene; Fe and Mg – olivine; Mn-rhodonite; k-adularia) and syntetic minerals of Cr, V and Ni. Precision, as indicated by replicate determinations on an in-house standard, is better than 2% for major elements. The mineral chemistry data base was recently slightly enlarged with the addition of few analyses made at CeGUL on a JEOL JXA 8200 microprobe, equipped with 4 wave-length dispersive spectrometers (WDS) and an energy dispersive detector (EDS), using a range of natural minerals as standards. An accelerating voltage of 15 kV was combined with a beam current of 10 nA and a beam diameter of 5 mm.



5 – PETROGRAPHY AND MINERAL CHEMISTRY

5.1 Petrography

The main lithotypes representing Sal island lavas are alkali basalts, nephelinites and melilitites.

Alkali basalts are hypocrystaline to holocrystaline, mainly porphyric but occasionally aphyric rocks, frequently with vesicles filled with zeolites or carbonates. Olivine is the main phenocryst phase followed by subordinate clinopyroxene. Plagioclase is rare and amphibole occurs as a phenocryst phase in basalts from the Main Eruptive Formation. Euhedral to subeuhedral olivine (Fo_62-87), up to 8 mm across, often displays alteration to iddingsite and/or iron oxides/hydroxides along cracks. Occasionally they exhibit skeletal morphology indicating high growing rates stemming from the swiftness of quenching processes. Purple-brownish Ti-augite (< 1.5 mm across; Wo_48-52En_36-43Fs_9-12) frequently display zoning marked by a core to rim Ti enrichment (e.g. TiO₂ from 1.79 to 2.42 wt%). Hourglass-type zoning is occasionally present. Plagioclase, when present, may reach up to 1.5 mm across, and show core-rim zoning from An₇₃ to An₅₇. Amphibole is anhedric, pleochroic, frequently with reabsorbed rims where opaque minerals dominate. This is interpreted as the result of destabilization of amphibole due to devolatilization affecting magma during ascent. The groundmass in alkali basalts invariably consists of plagioclase laths (65.21 - 48.84 mol % An), occasionally oriented, Ti-augite (Wo_48-50En_33-41Fs_11-17; TiO₂ ≈ 5.19 wt%), and opaque oxide grains. Olivine may also occur. Interstitial brown isotropic glass is present in the groundmass of submarine lavas. Serra Negra Formation hyaloclastites locally show signs of phosphatization, demonstrated by the presence of phosphate minerals predominantly of the variscite type (Silva et al., 1993).

Nephelinites and melilitites are holocrystalline, porphyric, sometimes with glomeroporphyritic texture. The phenocrystal assemblage comprises olivine (Fo_81-87), clinopyroxene and opaque minerals. Olivine (up to 5 mm), sometimes with primary fluid inclusions, is frequently altered to iron oxides/hydroxides and serpentine. Some olivines display kink-bands (indicating deformation inside a solid matrix), allowing the interpretation that they correspond xenocrystals derived from xenoliths desegregation. The main clinopyroxene type is Ti-augite (Wo_51-54En_31-40Fs_10-15; TiO₂ = 6.33 - 7.25 wt %), up to 2.5 mm across and sometimes with hourglass zoning. Ti-augites are sometimes totally or partially replaced by crystal aggregates of yellowish-green esseneites (Wo_57-70En_29-36Fs_7-0.7; TiO₂ = 0.23 - 1.99 wt %) that were interpreted as result of sub-solidus fluid/rock interaction under high oxygen fugacity conditions (Munhá et al., 1991). The groundmass includes olivine, variable amounts of clinopyroxene (Wo_51-54En_34-39Fs_9-12), nepheline (sometimes in interstitial poeckilitic crystals), melilite (Aker₆₆Gehl₃₄; alongated microliths frequently altered and displaying typical peg-structure), perowskite, biotite/phlogopite and Fe-Ti oxides. Some samples have ocelli-like vesicles filled with carbonates and zeolites. Flakes of dark-red rhönite and small crystals of hauyne are present in the matrix of some olivine melilitites from the Monte Grande – Pedra Lume Formation. Variable proportions of clinopyroxene, nepheline and melilite in the groundmass lead to transitions between olivine melanephelinites, olivine nephelinites with melilite, and olivine melilitites.

Mantle xenoliths such as dunite/wherlite cumulates and lherzolite/harzburgite refractory residues are present in nephelinitic and alkali basaltic lavas (De Paepe & Klerkx, 1971; Kogargo & Senin, 1993; Ryabchikov et al., 1995; Bonadiman et al., 2005; Mendes et al., 2005; Shaw et al., 2006). Gabbro and gabbronorite xenoliths included in olivine melanephelinites from Monte Grande – Pedra Lume Formation, were interpreted as representing fragmental pieces of the oceanic crust crossed by ascending magmas (Mendes & Silva, 2001).



5.2 Mineral Chemistry

Representative electron micropobe analyses of phases in the volcanic rocks from Sal Island are given in tables 1-6.

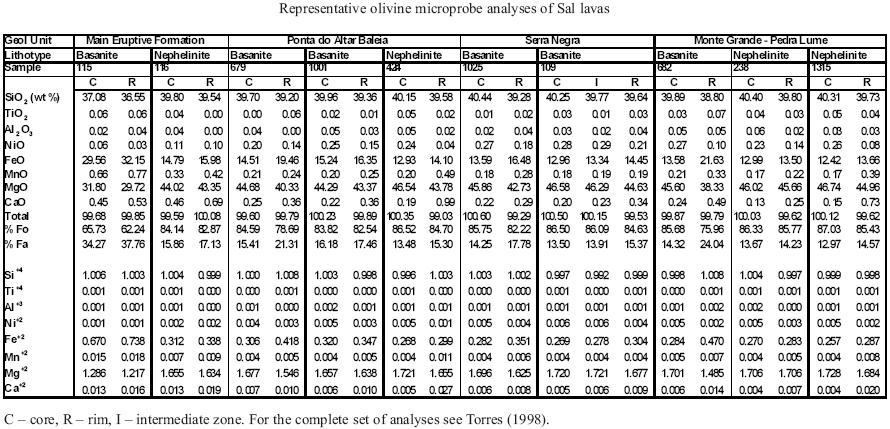

TABLE 1

Representative olivine microprobe analyses of Sal lavas

Análises (por microssonda) representativas das olivinas das lavas do Sal.

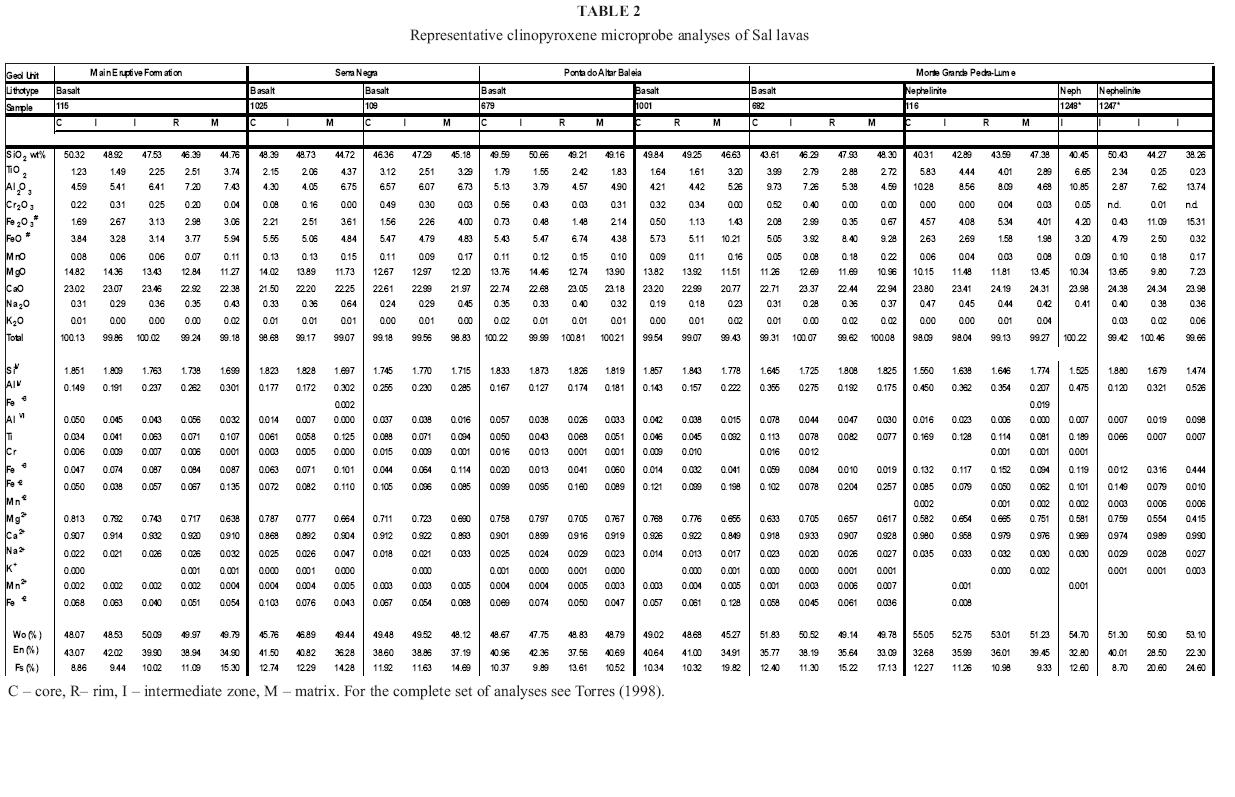

TABLE 2

Representative clinopyroxene microprobe analyses of Sal lavas

Análises (por microssonda) representativas das clinopiroxenas das lavas do Sal

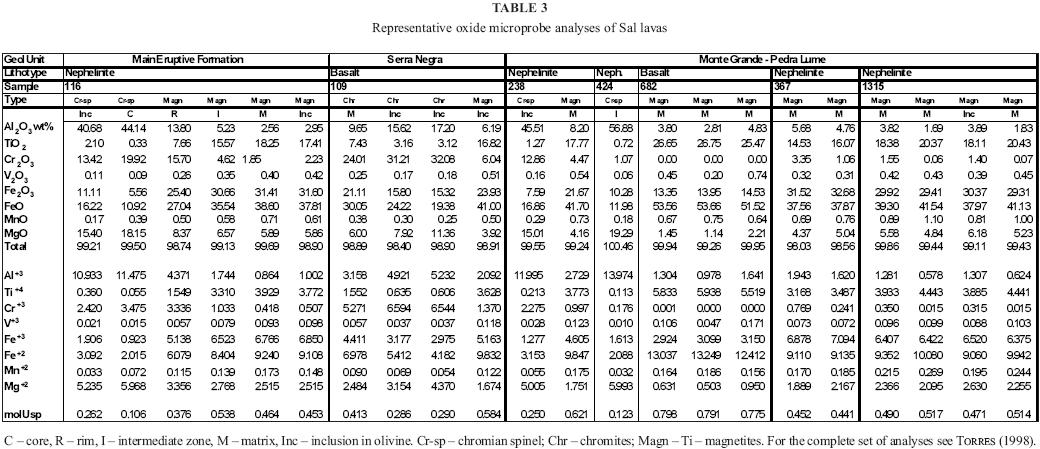

TABLE 3

Representative oxide microprobe analyses of Sal lavas

Análises (por microssonda) representativas das olivinas das lavas do Sal

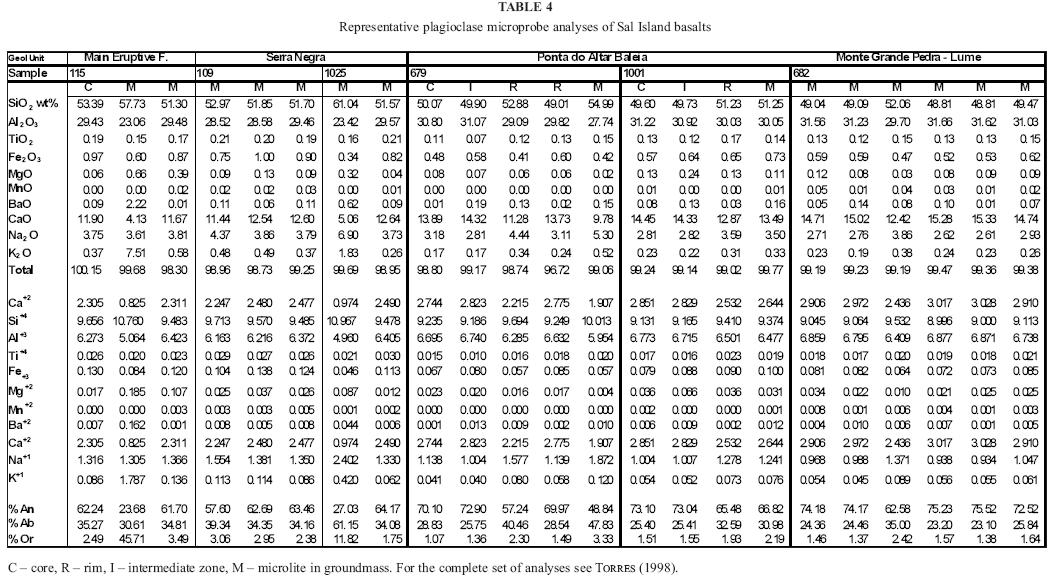

TABLE 4

Representative plagioclase microprobe analyses of Sal Island basalts

Análises (por microssonda) representativas das plagioclases das lavas do Sal

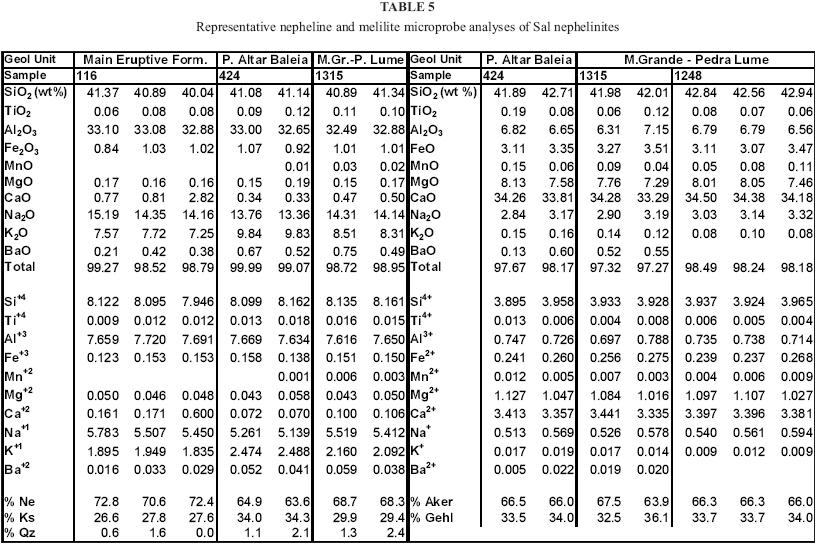

TABLE 5

Representative nepheline and melilite microprobe analyses of Sal nephelinites

Análises (por microssonda) representativas das nefelinas e melilites das lavas do Sal.

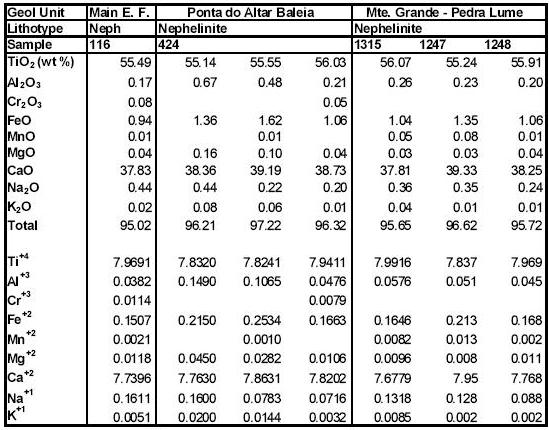

TABLE 6

Representative perowskite microprobe analyses of Sal lavas

Análises (por microssonda) representativas das perovsquites das lavas do Sal.



Olivine is compositionally variable with Fo contents ranging from 62 to 87 mol %, MnO from 0.11 to 0.77 wt%, CaO from 0.15 to 1.01 wt %, and NiO from 0.01 to 0.45 wt%. Olivine in nephelinitic/melilitic rocks tends to have lower NiO concentration at a given Fo, when compared to basaltic olivines.  Phenocrysts are usually zoned, with Fo and Ni decreasing and Ca and Mn increasing from core to rim. The increase of Ca content normally is attributed to a response to pressure decrease during magma ascent (Hirschmann & Ghiorso, 1994). However, the distinct evolutionary trends displayed by olivine in basaltic and nephelinitic rocks (Fig. 4) show that the composition of olivine is also strongly dependent of magma composition and crystallization temperature. Indeed it has been suggested that CaO content of olivines varies inversely with silica activity whereas  increases with the decrease of polymerization degree of the magma (e.g. Watson, 1979; Mata, 1996; 1998). This is supported by the Sal data depicted in Fig. 6 taking into account that SiO₂ range from 39 to 45 wt% in basalts and from 34 to 40 wt % in nephelinites (see table 7).

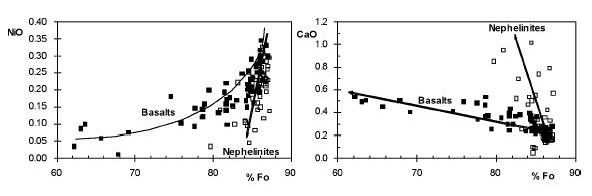

Fig. 4 – NiO and CaO (wt %) vs. Fo diagrams for olivine in Sal basaltic (filled squares) and nephelinitic (open squares) lavas.

– Diagramas NiO e Cao (wt %) vs. Fo da olivina nas rochas basálticas (quadrados preenchidos) e nefeliníticos (quadrados vazios) da ilha do Sal.

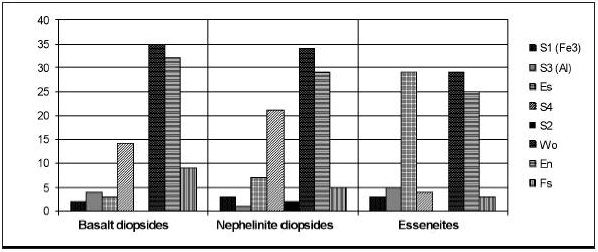

Fig. 5 – Histograms of relative percentages of the various types of substitution in pyroxenes (MORIMOTOet al.1988) from basaltic and nephelinitic rocks.

– Histogramas com as percentagens relativas dos diversos tipos de substituição nas piroxenas (Morimoto et al. 1988) das rochas basálticas e das rochas nefeliníticas

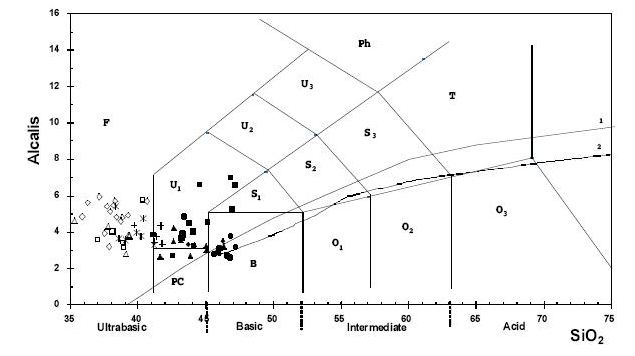

Fig. 6 – Silica – Alcalis (TAS) diagram (LE BAS et al., 1986). Lines 1 and 2 according to IRVINE AND BARAGAR (1971) and KUNO (1966). Open symbols – nephelinites and melilitites. Filled symbols – basalts and basanites. Squares – Main Eruptive Formation, circles – Serra Negra Eruptive Formation, triangles – Ponta do Altar-Baleia Complex, diamonds (melilitites and melilite nephelinites) and asterisks (nephelinites) from Monte Grande Pedra Lume Formation.

– Diagrama Silica - Alkalis (TAS: Le Bas et al., 1986). As linhas 1 e 2 according to Irvine and Baragar (1971) and Kuno (1966). Símbolos vazios – nefelinitos e melilititos. Símbolos preenchidos – basaltos e basanitos. Quadrados – Formação Eruptiva Principal, círculos – Formação Eruptiva da Serra Negra, triangulos – Complexo de Ponta do Altar – Baleia. Formação do Monte Grande Pedra Lume –losângos (melilititos e nefelinitos com melilite) e asteriscos (nefelinitos).

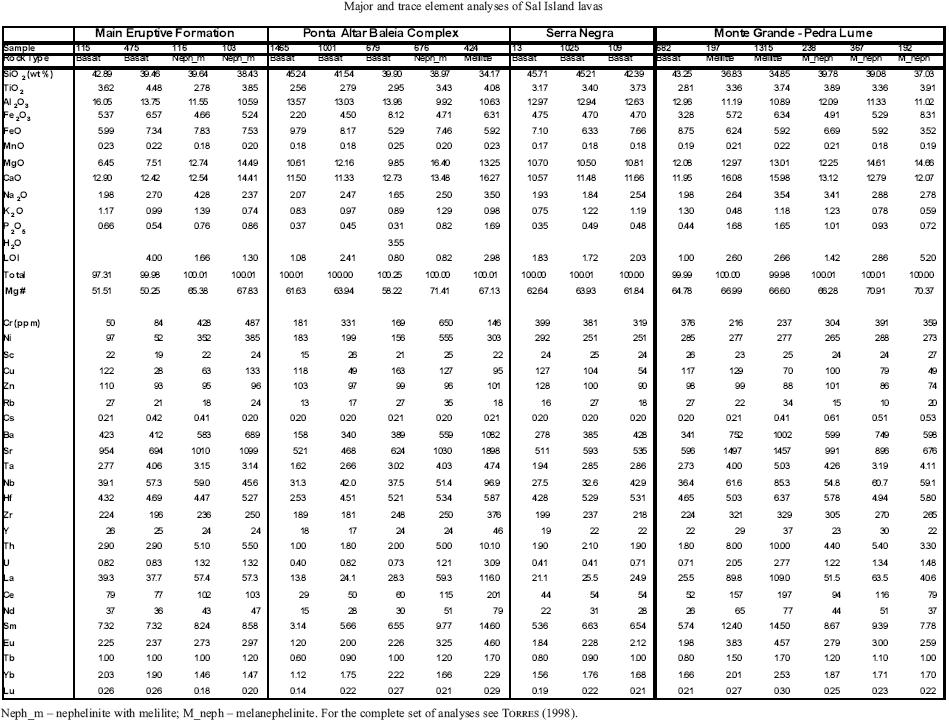

TABLE 7

Major and trace element analyses of Sal Island lavas

Análises de óxidos e de elementos traço das lavas da ilha do Sal.



Estimation of olivine pnenocrysts crystallization temperatures by the methods of Roedder & Emslie (1970) and Beattie (1993), indicates values from 1266 to 1326 ºC for basaltic rocks and 1324 to 1363 ºC for nephelinites/melilitites. For these calculations only olivine-whole rock pairs for which 0.30 were used in order to ensure that crystal/liquid equilibrium was attained (Roedder & Emslie, 1970).

Most pyroxenes found in Sal Island basaltic and nephelinitic lavas are classified as diopsides although in many of the nephelinitic/melilitic rocks they have Wo > 50 mol %, as it is typical for silica-undersaturated lavas. Some of the pyroxenes in nephelinites/melilitites are esseneites resulting from low-temperature re-crystallization of diopsides (Munhá et al., 1991). Diopsidic clinopyroxenes are enriched in Al₂O₃ and TiO₂ (up to 10.85 and 6.65 wt % respectively) with the highest concentrations confined to the rims and groundmass. Diopsides are Ca rich (CaO = 21 to 25 wt %) showing a general increase from alkali basalts (Ca < 0.94 a.f.u.) to nephelinites (Ca > 0.94 a.f.u.) pointing out to a greater importance of non-quadrilateral substitutions in nephelinites.

Pyroxene chemistry indicates that the S4 type (CaMg_0.5Ti_0.5Al^IVSiO₆) is the most important non-quadrilateral substitution in the Sal pyroxenes (see Fig. 5).

Sub-solidus esseneites, given their low Ti and Cr, and high Fe³⁺ relatively to Al in M1 position, are dominated by FATS (Fe³⁺-Al Tschermark or esseneite) component substitution (Fig. 5).



Oxides are predominantly members of the magnetite-ulvospinel solid solution series. Ti-magnetites (TiO₂ = 14.53 - 26.75 wt %) display progressive substitution of Cr + Al (0.59 - 7.71 a.f.u.) by Ti, Fe³⁺ and Fe²⁺ (% mol Usp = 43 - 80) with the advance of magmatic evolution. A few Al-rich chromian spinels and chromites (in particular those included in olivine phenocryst cores) can be considered as earlier crystallization phases that fractionated under relatively high-pressure conditions (e.g. Mata & Munhá, 2004). Their composition ranges within the spinel-magnesiochromite solid solution due to Cr ↔ Al exchange.

Plagioclase phenocrysts range from bytownite (An₇₃) cores to labradorite (An₅₇) rims. Groundmass microlites are highly variable extending from compositions similar to those characterizing phenocrysts down to 24 mol % An, reflecting progressive anortite (CaAl₂Si₂O₈) replacement by albite (NaAlSi₃O₈) along the fractionation processes.

Nepheline contains up to 9.8 wt % K₂O corresponding to 34 mol % Ks.

Melilite ranges from 64 to 67 mol % of akermanite.

Perowskite quantitative analyses show considerable substitutions of Ca by rare earth elements (knopite) that were analyzed only qualitatively. Moreover, there is evidence for the Nb and small amounts of Ta replacing Ti (dysanalyte and loparite).



6 – GEOCHEMISTRY

6.1. Major and trace-element results

 The studied Sal volcanic rocks (see Table 7 for major and trace-element analysis results) have low silica contents (SiO₂ » 34 to » 46 wt %) and high alkalis concentrations (Na₂O up to 4.73%; K₂O up to 2.6%), plotting within the alkalic field on the TAS (total alkalis vs. SiO₂) diagram – Fig. 6 (Le Bas et al., 1986, Le Maitre, 2002). Na₂O/K₂O (wt %) in excess of 1 ( = 2.36 % ± 0.09), allows to consider these lavas as sodic following the proposal of Middlemost (1975).

CIPW normative compositions range from Ne normative (1 - 20 %) to Hy normative (3 - 17 %), with the great majority of samples (88%) being silica undersaturated and with a considerable number (45%) of them corresponding to foidites (Fig. 6 and 7).

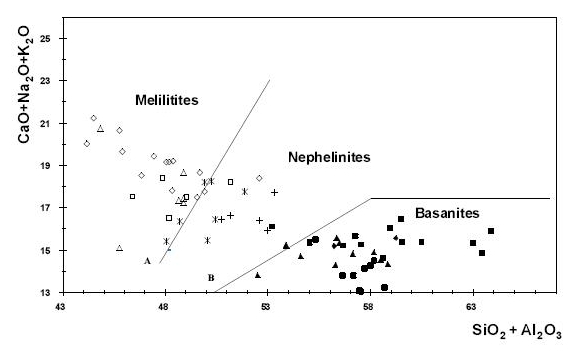

Fig. 7 – Discrimination diagram for melilititic, nefelinitic and basanitic rocks, according to LE BAS (1989). Symbols as in previous figure.

– Diagrama discriminante das rochas melilitíticas, nefeliníticas e basaníticas, segundo Le Bas (1989). Simbologia como na figura anterior.



All the hyperstene normative samples (12 % of the analysed samples) belong to the Serra Negra Eruptive Formation and are also characterized by distinct trace element ratios (e.g. Y/Nb = 0.60 ± 0.02; (La/Sm)n = 2.49 ± 0.03 ; (La/Yb)n = 10.24 ± 0.39) when compared  to those ratios of undersaturated lavas from younger and older formations Y/Nb = 0.49 ± 0.08; (La/Sm)n = 3.79 ± 0.71; (La/Yb)n = 20.65 ± 8.58). The majority of Serra Negra lavas plot in the basalt field of the TAS diagram (Fig. 6) occupying a position close to the Kuno (1966) and Irvine and Baragar (1971) compositional dividers between alkaline and tholeiitic suites, but clearly inside the alkali basalt field defined by Bellieni et al. (1983; in: Le Maitre et al., 2002).

The studied lavas are strongly enriched in incompatible elements with La being 50 to 500 times more concentrated than in chondrites. As seen in Fig. 8, REE are significantly fractionated, with (La/Yb)n ranging from 8.84 to 36.34. This fractionation is inversely correlated with the degree of silica-undersaturation or silica content, increasing from alkali basalts to melilitites through basanites and nephelinites (Fig. 9).

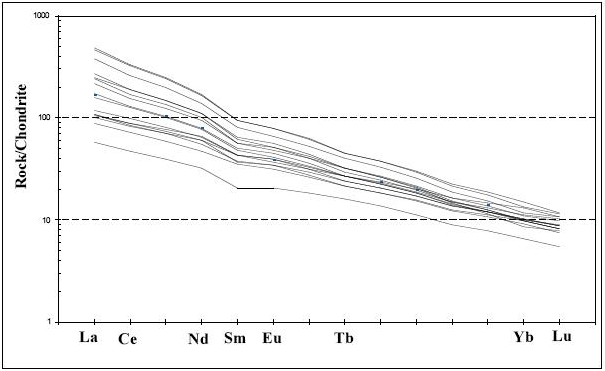

Fig. 8 – Chondrite normalized (MCDONOUGH AND SUN, 1995) Rare Earth Elements pattern for studied lavas from Sal Island.

– Padrão de distribuição das terras raras das rochas da ilha do Sal, normalizados em relação aos condritos (McDonough and Sun, 1995).

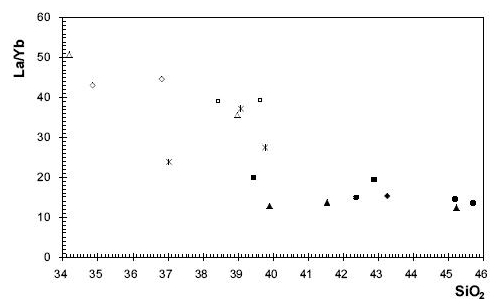

Fig. 9 – La/Yb vs. SiO₂ diagram. Open symbols - Basanites, nephelinites and melilitites. Filled symbols - Basalts. Squares - Main Eruptive Formation, circles - Serra Negra Eruptive Formation, triangles - Ponta do Altar-Baleia Complex, diamonds (melilitites and melilite nephelinites) and asterisks (nephelinites) from Monte Grande Pedra Lume Formation.

– Diagrama La/Yb vs. SiO₂. Símbolos vazios – basanitos, nefelinitos e melilititos. Símbolos preenchidos – basaltos. Quadrados – Formação Eruptiva Principal, círculos – Formação Eruptiva da Serra Negra, triangulos – Complexo de Ponta do Altar – Baleia. Formação do Monte Grande Pedra Lume –losângos (melilititos e nefelinitos com melilite) e asteriscos (nefelinitos).



Other incompatible trace elements concentrations also vary within a significant range and show an increase with both differentiation and degree of silica undersaturation. Sal mafic lavas present extended trace element patterns with the relative degree of enrichment for the different elements tendentiously reflecting the order of incompatibility usually determined for magma genesis processes of non-orogenic oceanic lavas. This is demonstrated, for example, by values of Zr/Y (4.19 to 13.72; = 10.21 ± 0.22), Nb/Zr (0.14 to 0.60; = 0.21 ± 0.01), and Ba/Sr (0.30 to 1.55; = 0.79 ± 0.04) higher those reported for chondrites (McDonough & Sun, 1995). However, a significant difference arises from the patterns depicted by melilitic/nephelinitic rocks as compared with those of basalts (Fig.10). Contrasting with basalts, strongly undersaturated rocks are characterized by marked Rb, K, and Hf negative anomalies.

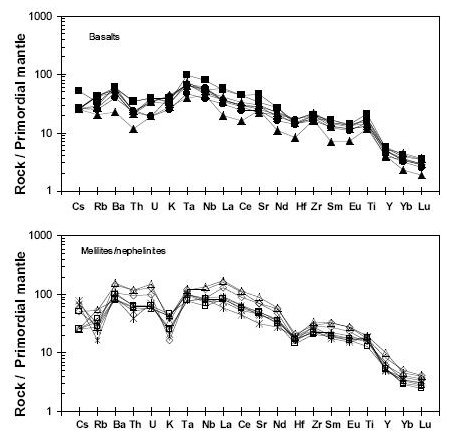

Fig. 10 – Primitive mantle-normalized (SUN & MCDONOUGH, 1989) incompatible element diagrams for basaltic and melilititic/nephelinitic rocks. Symbols as in previous figure.

– Padrão de distribuição dos elementos incompativeis das rochas melilititicas/nefeliníticas, normalizadas relativamente ao manto primordial (Sun & McDonough, 1989). Símbolos como na figura anterior.



6.2. Sr and Nd Isotopic results

The obtained results (see Table 8) are somewhat variable, covering the following ranges: ⁸⁷Sr/⁸⁶Sr = 0.703080 - 0.704101 and ¹⁴³Nd/¹⁴⁴Nd = 0.512770 - 0.513118.  Sr isotopic ratios tend to be negatively correlated with ¹⁴³Nd/¹⁴⁴Nd, with the majority of samples plotting in the depleted quadrant (eSr < 0; eNd > 0) of the Sr-Nd diagram (Fig. 11). This indicates the derivation from source(s) with time-integrated Rb and Nd depletion relative to Sr and Nd, respectively. Sal lavas tend to plot below the mantle array and close to the composition of the HIMU mantle component.  However, some of the analysed samples are characterized by high ⁸⁷Sr/⁸⁶Sr, for a given ¹⁴³Nd/¹⁴⁴Nd, as compared with samples from other islands of the Cape Verde archipelago. This is interpreted as reflecting the effects of alteration, which modified the magmatic Sr isotopic signatures but not the Nd ones.

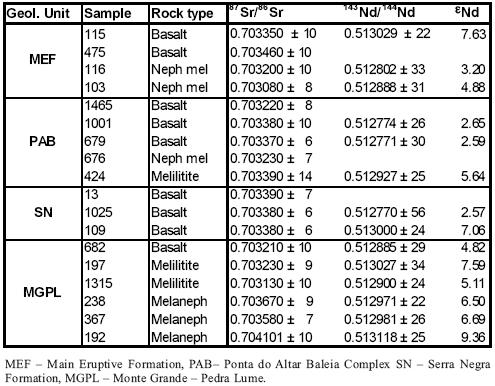

TABLE 8

Sr and Nd isotopic analyses of Sal Island lavas

- Análises isotópicas de Sr e Nd das lavas da ilha do Sal.

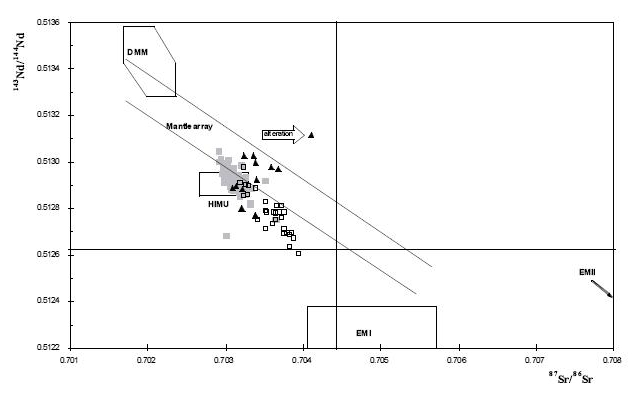

Fig. 11 – Diagram ¹⁴³Nd/¹⁴⁴Nd vs. ⁸⁷Sr/⁸⁶Sr for Cape Verde archipelago lavas. Mantle component fields and ‘Mantle array’ from Zindler & Hart (1986). Square symbols correspond to data in literature (Gerlach et al., 1988; Davies et al. 1989; Jorgensen & Holm, 2002; Holm et al., 2006; Millet et al., 2008). Filled squares - Northern Islands (CVN), open squares - Southern Islands (CVS). Black triangles represent new data for Sal island.

– Diagrama ¹⁴³Nd/¹⁴⁴Nd vs. ⁸⁷Sr/⁸⁶Sr para as amostras do Arquipélago de Cabo Verde. Os campos definidos para os componentes do manto e para o “Mantle array” foram extraídos de Zindler & Hart (1986). Os símbolos quadrados correspondem a análises publicadas (Gerlach et al., 1988; Davies et al. 1989; Jorgensen & Holm, 2002; Holm et al., 2006; Millet et al., 2008); cinzentos - ilhas do norte (CVN), brancos – ilhas do sul (CVS). Os triângulos a cheio representam novos dados para a ilha do Sal.



It is interesting to note that some of the samples (thought unaffected by alteration processes), present ¹⁴³Nd/¹⁴⁴Nd ratios down to 0.51277, being clearly lower than those typically assigned to the HIMU and DMM  mantle source components, usually considered as the main contributors for the mantle sources of the Northern Cape Verde islands.



7 – DISCUSSION

7.1 Age constraints

The Sal geochronological data (Torres et al., 2002a; Holm et al., 2008; see also this paper: 3 - Geology and Geochronology), as well those published for the other Cape Verde islands (see below) allow the discussion of some aspects of the archipelago evolution.

The most ancient volcanic rocks outcropping at the Cape Verde Archipelago have been described from the islands of Maio and Santiago, where late Jurassic basalts occur (Stillman et al., 1982; Gerlach et al., 1988). However the MORB affinities of these rocks led De Paepe et al. (1974) to consider them as representing uplifted ocean-floor (see also Gerlach et al., 1988; Millet et al., 2008).

Considering the age (25.6 Ma) obtained for the Old Eruptive Complex of Sal (Torres et al., 2002a) and the published geochronological data for the Cape Verde Archipelago (Griffiths et al. 1975; Grunau et al. 1975;  Mitchell et al. 1983; Cahen et al., 1984; Torres et al., 2002a; Plesner et al., 2002, Madeira et al., 2005; Bosse et al., 2007; Duprat et al., 2007; Holm et al., 2008; Dyhr & Holm, 2010; Foeken et al., 2009; Madeira et al., 2010; Ancochea et al., 2010), we conclude that Sal preserves the most ancient emerged rocks of the Cape Verde hotspot. However, considering the evidences for K-Ar age resetting of late Jurassic basalts at 40-50 Ma, which is attributed to hotspot activity (Mitchell et al., 1983), it is suggested that the Cape Verde plume related magmatism must have started some 25 Ma before the genesis of the first emerged testimonies.

The lack of a well defined island lineament, the proximity to the West African craton and the synchronous tectonic and magmatic evolution of the islands of Maio (Cape Verde) and Fuerteventura (Canary) lead some authors (King & Ritsema, 2000; Patriat & Labails, 2006; King, 2007) to argue against a mantle plume origin for the Cape Verde archipelago. Indeed, the lack of a well defined rectilinear hotspot track is, at first sight, somewhat surprising. However, it must be remembered that the north-eastward absolute motion of the African plate slowed abruptly 30 Ma ago as a consequence of its collision with Eurasia (Silver et al., 1998). According to these authors, the African plate drift in the last 10 Ma is lower than 0.8 cm yr^-1. If we also take into account that the rotation pole of the African Plate in the last 6 Ma (18.50ºN, 17.78ºW; Pollitz, 1991) is relatively close to Cape Verde, we are compelled to accept that a long and well defined hotspot track is not expectable in the Cape Verde region, despite of the long history of volcanic activity.

It should be mentioned that (when considered as a whole) the Cape Verde islands display a very complex age distribution pattern; there is, however, a tendency for east-west age decrease. This is shown by a comparison of the ages of basal complexes of the eastern islands of Sal (25.6 Ma; Torres et al., 2002a) and Maio (21.1Ma; Grunau et al., 1975) with the ages of similar complexes in the western islands of the northern (Santo Antão: 7.6 Ma; Plesner et al., 2002) and southern islands (Brava:  2.90 Ma; Madeira et al., 2010) alignments.

When considered separately, the Southern Cape Verde islands present a clear south-western age decreasing trend, which is primarily suggested by morphological criteria. In fact, Maio Island located on the northeast end of the alignment presents much more eroded landforms than the other Southern Islands (e.g. Serralheiro et al., 1970; Madeira et al., 2008). On the other hand the isotopic ages obtained for Brava (Madeira et al., 2010), the fact that the great majority of the exposed volcanics at Fogo are younger than 130 ka (Foeken et al., 2009), the occurrence at Fogo of more than 20 eruptions since the discovery and settlement of the island some 550 years ago (Torres et al., 1997, 1998a), and the occurrence to the southwest of Brava of the Cadamosto seamount, a seismically active 3 km tall volcanic edifice (Grevemeyer et al., 2009), suggest that we are faced with a hotspot track resulting from lithosphere migration over a fixed mantle plume, which would now be centred underneath the Fogo/Brava/Cadamosto region (e.g. Torres et al., 1998b; Grevemeyer et al., 2009). On the other hand the location of the Northern Islands has been considered as consequence of translithospheric fractures constraining the location of island buildings (Torres et al., 1998b). Large scale fault-controlled magma transport for more than 3000 km was clearly demonstrated in the Ferrar Large Igneous Province (Elliot et al., 1999) conferring feasibility to the above mentioned hypothesis, which may imply “horizontal” magma transport of some hundred km from the upward plume batches of magmas to the local(s) of eruption.

Alternatively, Holm et al. (2008) consider the plume presently centred on a region located Northwest of Sal Island, close to the places where the depth, geoid and heat flow anomalies reach its maxima. Following these authors, channelling by erosion in a swell root by different ponding batches of buoyant plume mantle would explain the spatial and age distribution of the islands. This is clearly an open question.

Notwithstanding that the Cape Verde plume is characterized by a plume flux which is only 9 to 18% of the values reported to Hawaii and Canary islands, respectively (see Schubert et al., 2001; Holm et al., 2008), it is significant that the Cape Verde Rise constitutes the largest reported oceanic swell (e.g. Lodge and Helffrich, 2006). The above mentioned semi-stationary position of the lithosphere and a long-term magmatic history (during at least 26 Ma) explains how a weak plume produced such a prominent swell (see also Mata et al., 2010).

The data obtained by Torres et al. (2002a) for Sal, allow the conclusion that the outcropping volcanics cover a significant time (» 26 Ma) with two important volcanic hiatus as long as »3 and »4 Ma. The volcanism has been inactive since 0.6 Ma ago. The same authors obtained an age 16.3 Ma for an essexitic rock considered to be part of the Old Eruptive Complex. Considering the age determined for the Main Eruptive Formation (15.8 Ma), those plutonic rocks inside the Old Eruptive Complex can be substantially younger than the enclosing rocks, being coeval of volcanics erupted during later stages of the volcanostratigraphic evolution of the island. However, it should be emphasized that an age resetting can not be completely discarded for those essexites.



7.2 Petrogenesis

The estimated olivine saturation temperatures (basalts: 1266 to 1326ºC; nephelinites: 1324 to 1363ºC; see 5.2) are indicative that Cape Verde primitive magmas were hotter than the expected temperature for the asthenosphere (» 1280ºC; e.g. McKenzie & Bickle, 1988; Watson, 1993). This allows consider that they were originated from a thermally driven mantle plume (see also Putirka, 2008). This percept is endorsed by the estimated temperature of magmatic segregation calculated using the lavas major element composition and the methodology proposed by Albarède (1992), which are also above 1280ºC (see below).

As depicted by the TAS diagram (Fig. 6) Sal lavas are characterized by a limited range of compositions, only basic and ultrabasic rocks being represented. Indeed, intermediate lavas are completely absent, clearly contrasting with that described for other Cape Verde islands where phonolites are volumetrically important (Brava: Mourão et al. 2010, Madeira et al., 2010; Boavista: Dhyr & Holm, 2010; Santo Antão: Plesner et al., 2002; Holm et al., 2006) (see also Bebiano, 1932). This feature demonstrates that magmatic differentiation processes played a significantly less important role on the chemical variability of the erupted Sal magmas, suggesting that magma chambers were ephemeral and/or volumetrically not significant. This hypothesis is supported by the occurrence of ultramafic mantle xenoliths (see 5.1 Petrography) which indicates that magmas carrying them did not pass through a shallow subcaldera magma reservoir (e.g. Clague 1988).  At Sal Island intermediate rocks are only represented as minor volumetric intrusions (Old Eruptive Complex) and by some phonolitic and trachytic dykes cutting the volcanic sequence.

An insight on the genetic processes of the Sal Island magmas is offered by the study of rocks representative of “nearly primary” magmas (Mg# > 58; Ni > 150 ppm). These highly enriched primitive lavas are characterized by  low Yb (1.12 to 2.53 ppm) and Lu (0.14 to 0.30 ppm) contents and by strong fractionation between light and heavy REE [(La/Yb)n = 8.84 to 36.34), characteristics which are indicative of a source characterized by the presence of residual garnet.

The K negative anomalies portrayed by melilitic/nephelinitic rocks have been described in HIMU-type lavas and considered to reflect the K depletion of the subducting oceanic crust occurred during dehydration at subduction zones (Lassiter, 2004). However, for Sal lavas, the increase of Ce/K along with Ce (a proxy of the partial melting degree) indicates a higher compatibility for K than Ce, in opposition to that theoretically expected from melting of sources without K-bearing minerals. This is strongly suggestive that Sal magmas equilibrated with a K-rich residual phase (amphibole and/or phlogopite) capable to preferentially retain K relatively to the adjacent LILE and HFSE (see Francis And Ludden 1995). Considering that the degree of incompatibility of trace elements during partial melting can be inferred from the interception of regression lines in binary diagrams (Hanson, 1989) and that, for Sal D_K » D_Sr > D_Rb > D_Ba, amphibole is probably the dominant K-bearing residual phase (e.g. , ; , ;   ; ;  ≥ 10 e ≤ 0.1 see Adam et al., 1993; LaTourrete et al., 1995; Foley et al., 1996; Späth et al. 2001).

Accepting that Yb contents are roughly invariant during partial melting of a garnet-bearing mantle source (» two times that of chondrites; Clague & Frey, 1982) estimates of melting percentages during Sal magma(s) genesis may be obtained by the inverse approach of Minster & Allègre (1978). This approach substantiates low, but variable, degrees of partial melting, from 1.2 to 4.8 % for melilite/nephelinite magmas to 6.1 to 8.8 % for basaltic magmas (in agreement with experimental data obtained for melting of garnet lherzolite lithologies; e.g. Gudfinnsson & Presnall, 2005).

Considering that garnet is stable in mantle peridotites at depths in excess of 60 km, the thickness of the Cape Verde lithosphere (» 83 km; Cazenave et al., 1988) and the large abundance of rocks presumably generated by very low degrees of partial melting, we consider that Sal magmas were generated by adiabatic melting of the ascending mantle plume, with the thick lithosphere lid limiting the minimum depth of melting and, consequently, also the amount of magma generated (see Watson & Mckenzie, 1991).  However, it should be emphasized that amphibole is not stable at temperatures above 1150°C (e.g. Wallace & Green, 1991), i.e., at temperatures prevailing in the asthenosphere or in mantle plumes. Thus, the evidence (presented above) for equilibration of the most undersaturated Sal magmas with amphibole implies the interaction of plume magmas with the lithospheric mantle (see Class & Goldstein, 1997; Mata et al., 1998; Späth et al., 2001). The origin of such hydrated magmas in the lithosphere can be considered as the result of metasomatism, which created low solidus and highly enriched lithospheric domains. In Cape Verde the metasomatic agent has been ascribed either to kimberlitic (Sal) or carbonatitic (Santiago) melts based on the detailed study of mantle xenoliths and of lavas (Bonadiman et al., 2005; Martins et al., 2010).

Estimates of temperature and pressure of magmatic segregation using the methods proposed by Albarède (1992) and Ghiorso et al. (1983)  give 1309 to 1422 ºC and 1.8 to 2.7 GPa (≈ 54 to 84 km) for basaltic magmas and 1412 to 1578 ºC and 3.3 to 4.9 GPa (≈ 102 to 152 km) for foiditic magmas. The obtained sub-lithospheric depths of segregation for the majority of magmas support their origin by adiabatic melting of an ascending plume and suggest that the major element composition of plume magmas was not significantly affected by the interaction with lithosphere.

The significant radiogenic isotope variability of Cape Verde magmas has been explained by variable mixing of HIMU, DMM, EM1 and a lower mantle component. So far, it has been of general consensus that Northern Islands (CVN) magmatic sources reflect the contribution of HIMU, DMM and the lower mantle, the EM1 component being restricted to Southern Islands (CVS) sources (Gerlach et al., 1988; Davies et al., 1989; Kokfelt et al., 1998; Jørgensen & Holm, 2002; Doucelance et al., 2003; Escrig et al, 2005; Holm et al., 2006; Millet et al., 2008; Barker et al. 2009a, b; Martins et al., 2010).

Cape Verde EM1-type signatures have been explained by the occurrence in the upper mantle of a megalith(s) of sub-continental lithospheric mantle (SCLM) probably delaminated during the opening of Atlantic ocean. A SCLM origin for the EM1 fingerprints emerged from the geochemical study of lavas (e.g. Gerlach et al., 1988; Doucelance et al., 2003; Millet et al., 2008; Martins et al., 2010) and receive support from a recent geophysical study which imaged a high velocity zone beneath Cape Verde (Begg et al., 2009). Its presence beneath Sal, one of the Northern Islands, has been inferred from the study of xenoliths. Indeed, Bonadiman et al. (2005) studied spinel-peridotite xenoliths included in Sal lavas and found evidence for the occurrence of kimberlite-like metasomatism, which was interpreted as caused by the melting of a SCLM domain. More recently, Coltorti et al. (2010) presented the results of in situ Os isotope analyses of sulfide grains from the xenoliths. They found Re-depletion model ages mainly ranging from Neoproterozoic to Archean, i.e. compatible with the tectonic history of the western margin of the West African Craton and the corresponding continental margin of Brazil.

Our Sr and Nd isotopic data give some support to these studies suggesting that the presence of SCLM is not restricted to the mantle portions underneath the Southern Islands.  Indeed, two of the analyzed Sal samples are characterized by ¹⁴³Nd/¹⁴⁴Nd neatly lower (0.512770 – 0.512771) than those characterizing CVN or the HIMU component, implying the presence of a more enriched (EM1 ?) component in their source (Fig. 11). This percept is also supported by the fact that these two low ¹⁴³Nd/¹⁴⁴Nd samples are also characterized by Ba/Nb > 10.3 and Rb/Nb > 0.72 clearly above the values usually reported for lavas with strong  HIMU and/or DMM affinities, but compatible with a contribution of the EM1 component (Weaver, 1991; Willbold & Stracke, 2006; 2010).

Thus, our study demonstrating the presence of EM1-type signatures in lavas from Sal, supports that sub-continental lithospheric megaliths, usually considered to be the responsible by the chemical signatures of Southern Cape Verde islands, also exist on the oceanic mantle beneath, at least, one of the Northern Islands.



Acknowledgements

This work was written in memory of Paulo Torres, deceased in 1999. It is partially based on a manuscript left by him. This work was funded by Instituto de Investigação Científica e Tropical (IICT), by Centro de Geologia da Universidade de Lisboa (CeGUL), by  Centro de Pesquisas Geocronológicas (CPGeo) do Instituto de Geociências do Instituto de Geociências da Universidade de São Paulo( IGc-USP) and by FCT through the research project PLINT (POCTI/CTA/45802/2002). Comments and suggestions of two anonymous reviewers contributed to the improvement of the manuscript.
